Big Event Marquee Festival Tent Event Marqeuee for Celebration
1. Application of Event Marquee Festival Tent
It is equipped with clear windows, decoration roof lining, inside
curtain, pagoda tent entrance. The tent series are widely used as
the party tent, wedding tent, exhibition tent, conference tent,
festivals celebration tent, corporate events tent or other events,
etc.
2. Specification for Event Marquee Festival Tent
· Frame struss: hard pressed extruded aluminum 6061/T6(15HW) which can last more
than 20 years.
· Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
· Connector: strong hot-dip galvanized steel
· Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
· Wind load: max. 100km/h (can be reinforced)
· Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
· Easy to be assembled and dismantled, movable.
· No pole inside, 100% available interior space.
3. Optional Accessories of Event Marquee Festival Tent
· Covers: colorful cover, transparent cover, inflatable roof cover
· Windows: dome or square clear PVC windows, mesh window, glass window for
glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette flooring
· Doors: double-wing glass door, single-wing glass door, glass fire door,
aluminum door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel
wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters: inner roof beam rain gutter or rain gutter between two similar
tents
· Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
4. Packaging of Event Marquee Festival Tent
1. aluminum frame packed in membrane film
2. hardware packed in solid carton box
3. roof and sidewall in professional PVC carry bag
5. Products certificate of Event Marquee Festival Tent
· National High-tech Enterprises
· ISO 9001:2008 Quality Control Standards
· IFAI Certificate of Membership
· American Rental Association Associate Membership
· Practical Type Patent Certificate
6. Liri Tent Series
Tent Roof Type | Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |

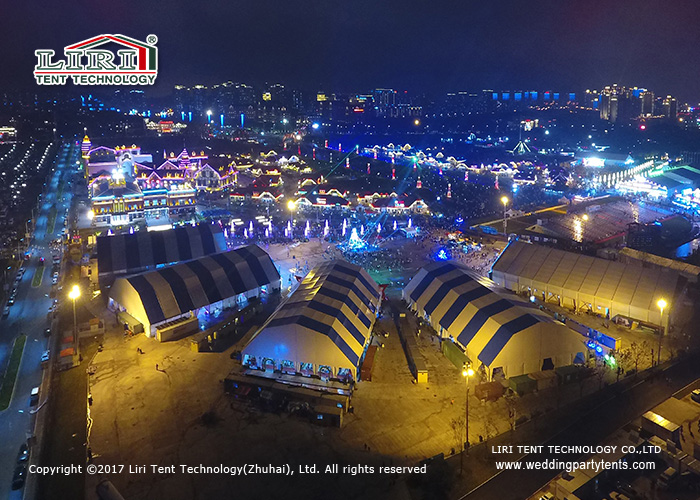

7. Pictures for reference
8. Liri PG Series
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| PG | 10m/32.8' | 5m/16.4' | 4m | 7.16m | 204x120x4mm(4-channel) |
| PG | 12m/39.4' | 5m/16.4' | 4m | 7.4m | 204x120x4mm(4-channel) |
| PG | 15m/49.2' | 5m/16.4' | 4m | 8.75m | 204x120x4mm(4-channel) |
| PG | 18m/59' | 5m/16.4' | 4m | 9.15m | 204x120x4mm(4-channel) |
| PG | 20m/65.6' | 5m/16.4' | 4m | 9.42m | 204x120x4mm(4-channel) |
| PG | 25m/82' | 5m/16.4' | 4m | 11.72m | 256x121x5mm(4-channel) |
| PG | 30m/98.4' | 5m/16.4' | 4m | 13.2m | 256x121x5mm(4-channel) |
| PG | 40m/131.2' | 5m/16.4' | 4m | 15.6m | 300x120x5mm(4-channel) |
| PG | 50m/164' | 5m/16.4' | 4m | 16m | 400x120x7mm(4-channel) |
| PG | 60m/197' | 5m/16.4' | 4m | 18m | 400x120x7mm(4-channel) |
The length can be extended by 5m bay such as
15m,20m,30m,40m...Customized size is available.
|
