Waterproof Huge Marquee Tent Structure system For Car Exhibition
Show
Description
The Arch Tent is composed of high reinforced aluminum frame and PVC
covers. Arch tent is based on the “A” frame clear span tent design
and reasonably absorbs the Chinese traditional architectural design
elements. We pre-press the aluminum roof-beams so that it can
become the curve shape.
The characteristics of the Arch Tent will include a good-looking
structure with a beautiful roof line and a lot of space inside the
tent. It will also give you a feeling of currency to use it for big
tents, exhibitions, or for a temporary showroom.
This product has obtained national patent, patent number:
ZL201120399888.2
Specifications
Model | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
ABT | 15m | 5m | 3.88m | 5.73m | 204x120x4mm(4-channel) |
ABT | 20m | 5m | 3.88m | 6.53m | 204x120x4mm(4-channel) |
ABT | 25m | 5m | 3.88m | 7.33m | 204x120x4mm(4-channel) |
AEBT | 15m | 5m | 3.92m | 5.55m | 256x121x4mm(4-channel) |
AEBT | 20m | 5m | 3.92m | 6.33m | 256x121x4mm(4-channel) |
AEBT | 25m | 5m | 3.92m | 7.15m | 256x121x4mm(4-channel) |
AEBT | 30m | 5m | 3.92m | 7.87m | 256x121x4mm(4-channel) |
ATH | 15m | 5m | 3.92m | 5.4m | 300x120x5mm(4-channel) |
ATH | 20m | 5m | 3.92m | 6.3m | 300x120x5mm(4-channel) |
The length can be extended by 5m bay such as
15m,20m,30m,40m...Customized size or shape is available.
|
Applications
Widely used for parties, weddings, events, celebrations, sports,
trade shows, warehouse, Hajj, conferences, cafe shops, restaurants,
corporate events, etc.

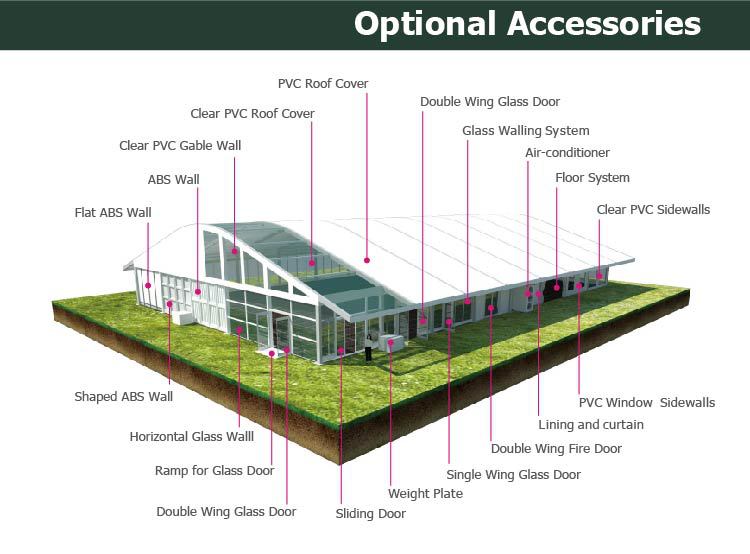

Accessories:
Covers: colorful cover, transparent cover, inflatable roof cover
Windows: dome or square clear PVC windows, mesh window, glass window for
glass wall
Wooden Flooring System: VIP cassette flooring, simple cassette flooring
Doors: double-wing glass door, single-wing glass door, glass fire door,
aluminum door, rolling shutter(automatic or manual)
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel
wall, steel plate wall
Fixing Methods: ground anchors, weight plate, expandable bolts
Rain Gutters: inner roof beam rain gutter or rain gutter between two similar
tents
Optional Items: table, chair, lighting, AC, carpet, installation tools, booth,
mobile toilet, etc.
