Portable Event Gazebo Canopy Tent / Sun Shade Tent For Beach for
Outddor Party Event Promotion

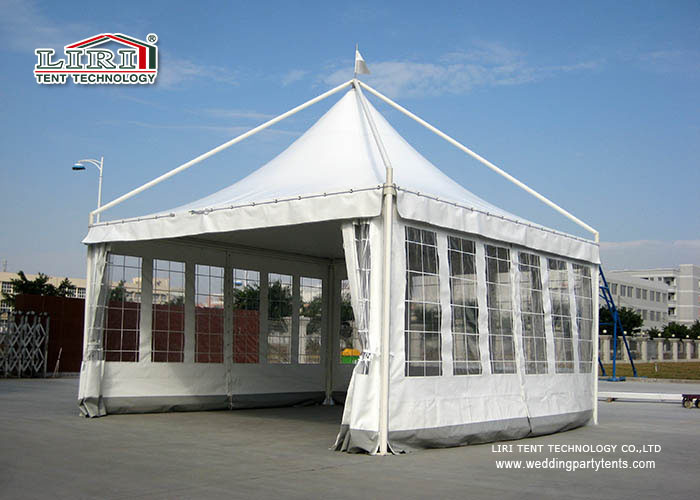

The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m,
and 6x6m. Pagoda Tent
has a side height of 2.5m. This type of Pagoda tent uses a 3
channel 65x65x2.5mm
aluminum alloy. The standard 8x8m and 10x10m Pagoda with a 2.6 side
height uses a 4
channel 122x68x3mm aluminum alloy and the wind loading is 80km/h
(0.3kn/m2).
The new fixing method has got design Patents. It is a new fixing
method which has
massively reduced the installing time and need no help of big
machine, and can avoid
sliding out. Easy to install and dismantle.
The optional accessories for the Pagoda are glass walling system,
door units, flooring

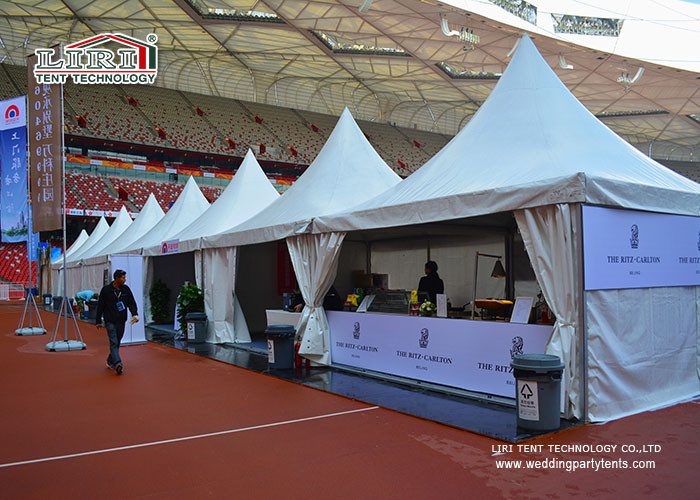

system, ground anchors, lining, etc. Pagoda tents can be used as a
single unit or

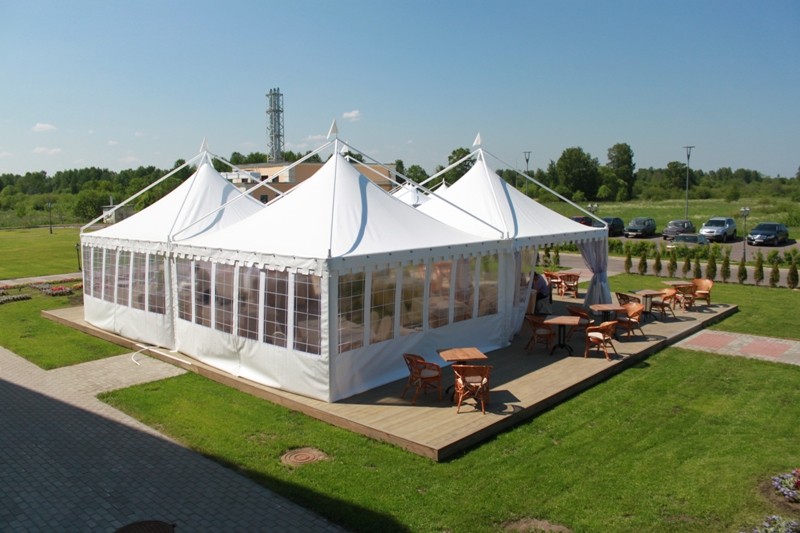

combined to enlarge space and become a special structure style with
a rain gutter. Our
pagoda tent can meet different levels of demand and is a more
flexible choice for
outdoor activities.
The standard Gazebo Tent with the side height of 2.5m is available
in 3x3m, 4x4m, 5x5m, and 6x6m. All the framework and junctions are
made out of aluminum alloy. It is easy to assemble the roofs
because it uses eyelets and sliding plastic resin balls to fix it.
The optional accessories for the Gazebo tent include clear windows,
lining, weight plate, rain gutter, digital printing, etc.
Gazebo Tents can be used as a single unit or combined by a rain
gutter to make a larger space and a special structure style.
This product has obtained national patent, patent number:
ZL201520411066.X
| Pagoda Tent Series |
| Model No. | Width (m) | Length(m) | Eave height (m) | Ridge height (m) | One 20 feet container can load (sets) |
Wind load | Aluminum main profile |
| PAG 2m/210 | 2 | unlimited | 2.1 | 3.35 | 100 to 130 |
80km/h
0.3kn/sqm | 55x55x2mm |
| PAG 2.5m/210 | 2.5 | unlimited | 2.1 | 3.63 | 98 to 120 |
| PAG 3m/210 | 3 | unlimited | 2.1 | 3.88 | 88 to 114 |
| PAG 3m/250 | 3 | unlimited | 2.5 | 4.3 | 88 to 114 | 65x65x2.5mm |
| PAG 4m/250 | 4 | unlimited | 2.5 | 4.8 | 65 to 90 |
| PAG 5m/250 | 5 | unlimited | 2.5 | 5.43 | 56 to 79 |
| PAG 6m/250 | 6 | unlimited | 2.5 | 5.92 | 47 to 70 |
| PAG 8m/260 | 8 | unlimited | 2.6 | 5.36 | 15 to 18 | 122x68x3mm |
| PAG 10m/260 | 10 | unlimited | 2.6 | 6.38 | 13 to 15 |
| Every set of gazebo includes: Aluminum frame, roof cover, four
sidewalls without clear windows |
| General Package: 1. Aluminum Frame--membrane film 2.Hardware--solid
carton box 3. Tent cover--PVC carry bag. |
| 20 feet container: Inner size: 5.69x2.13x2.18m; Usable Volume:
24-26CBM; Allowed Weight: 17.5 ton |
Description of
l Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more
than 20 years.
l Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
l Connector: strong hot-dip galvanized steel
l Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
l Wind Loading: max. 100km/h (can be reinforced)
l Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
l Easy to be assembled and dismantled, movable.
l No pole inside, 100% available interior space.
Applications:
Widely used for parties, weddings, events, celebrations, sports,
trade shows, warehouse, Hajj, conferences, cafe shops, restaurants,
corporate events, etc.
Accessories:
l Covers: colorful cover, transparent cover, inflatable roof cover
l Windows: dome or square clear PVC windows, mesh window, glass window for
glass wall
l Wooden Flooring System: VIP cassette flooring, simple cassette flooring
l Doors: double-wing glass door, single-wing glass door, glass fire door,
aluminum door, rolling shutter(automatic or manual)
l Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel
wall, steel plate wall
l Fixing Methods: ground anchors, weight plate, expandable bolts
l Rain Gutters: inner roof beam rain gutter or rain gutter between two similar
tents
l Optional Items: table, chair, lighting, AC, carpet, installation tools, booth,
mobile toilet, etc.
Fixing Methods:
1. If it is concrete ground, pls use the expandable bolts.
2. If it is tarmac ground or grass ground, sand ground or other soft grounds, pls use the steel anchors;
3. If it is plates system
4. If you will make the concrete bases to fix the tent, pls use the
embeded bolts M24x500mm.
5. marble or tile ground or other kind indestructible grounds, pls
use the weight
Certificates:
l National High-teach Enterprises
l ISO 9001:2008 Quality Control Standard
l IFAI Certificate of Membership
l America Rental Association Associate Membership
l Practical Type Patent Certificate
l Liri Tent Trade Mark Certificate
l Test reports for the PVC flame retardancy
l Engineering Certificate
Competitive Advantages:
l Established in 1997, Liri Tent is the first tent manufacturer in China.
l Liri Tent is the largest tent manufacturer in China. The factory covers 100,000sqm.
l The most reliable tent supplier in China, whose products have been exported
to over 100 countries.
l Keep being the No.1 tent exporter in China.
l We are more concerned about the quality and after-sales service
than you.
l The strongest and most creative technical team who are making new
designs in every year.
l Liri Tent is the pioneer of CNC Application. Realization of
automatical drilling and cutting for aluminum alloy and PVC fabric.
Achievement of higher manufacturing accuracy and quality.
More Information Please Contact with Blair Zhou
tent67@liri-tents.com, +86 13570669856
