Brand Name : | Liri Tent |
Model Number : | Car Industrial Storage Tent |
Certification : | SGS |
Price : | USD 30-80/sqm |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union |
Supply Ability : | 10,000 sqm/month |
Delivery Time : | 20 days |

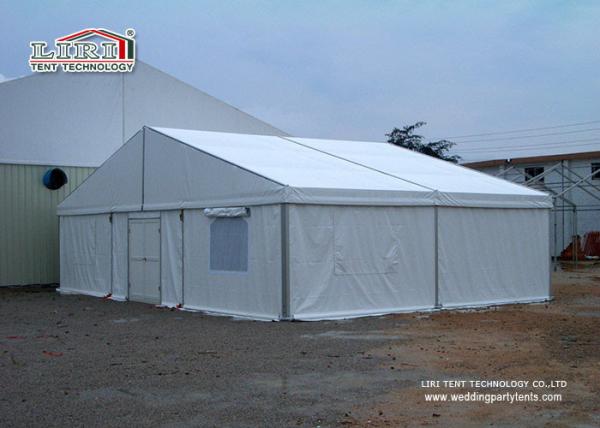

Waterproof Outside Industrial Storage Tents Sandwich Wall , Fire Retardant Tent
Product Description
1. Application of Movable Industrial Storage Tent
The tent series are widely used as the Temporary or Semi-permanent
Warehouse Structures, Permanent workshop tent, industrial tent
etc..It is waterproof, fire retardant. Most important, it is very
easy to install and dismentle. So it is suitable for the mobile
usage fo your warehouse. While steel warehouse structures are not
easy to install and move.
2. Specification for Movable Industrial Storage Tent
Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
WSBT | 5m/16.4' | 5m/16.4' | 4.2m | 5.05m | 204x120x4mm(4-channel) |
WSBT | 7.5m/24.6' | 5m/16.4' | 4.2m | 5.46m | 204x120x4mm(4-channel) |
WSBT | 10m/32.8' | 5m/16.4' | 4.2m | 5.84m | 204x120x4mm(4-channel) |
WSBT | 12m/39.4' | 5m/16.4' | 4.2m | 6.16m | 204x120x4mm(4-channel) |
WSTH | 20m/65.6' | 5m/16.4' | 5.2m | 8.4m | 300x120x5mm(4-channel) |
WSTH | 25m/82' | 5m/16.4' | 5.2m | 9.2m | 300x120x5mm(4-channel) |
WSTH | 30m/98.4' | 5m/16.4' | 5.2m | 10m | 350x120x5mm(4-channel) |
The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available. |
3. Optional Accessories for Movable Industrial Storage Tent
wooden floor,
glass door,
glass wall,
glass window,
ABS hard wall,
steel sandwich wall,
ground anchors,
anchor puller,
weight plate,
sidewalls with PVC-clear window,
rain gutters,
decoration ceilings and inside curtain,
ramp,
transport rack.
4. Materials of Movable Industrial Storage Tent
Fabric: Double PVC coated polyester fabric, 650-900g/sq. M, water
proof, UV resistance, fire retardant according to standard NFPA701,
CFM & DIN4102 B1/M2
Frame: Hard pressed extruded aluminum 6061/T6, anodized surface
finishing.
Connections: Hot-DIP galvanized
5. Life span of Movable Industrial Storage Tent
Fabric (cover & sidewalls): more than 10years;
Aluminum frame and galvanized connectors: more than 20years
6. Products certificate of Movable Industrial Storage Tent
Fabric: Test reports for the fire retardant, standards: NFPA701,
CFM & DIN4102 B1/M2
Structure safety: Certificates by the registered engineers in the
U. S. A & Australia.
(If the customers need above certificates copy, pls feel free to
contact with Liri Tent Technology. We will not show them on the
website to avoid copys.)
Fxing Methods :
1) If it is concrete ground, pls use the expandable bolts.
2) If it is tarmac ground or grass ground or sand ground or other
soft grounds, pls use the steel anchors;
3) If it is marble or tile ground or other kind indestructible
grounds, pls use the weight plates system;
4) If you will make the concrete bases to fix the tent, pls use the
embeded bolts M24x500mm.
