Fire Retardant Tents For Outdoor Events Marquees , Clear Span 30 By 30 Tent

Description

The clear span of the Huge Hall tent is 40m, 50m, 60m and the main profile size is 400x120x5mm. This tent is a modular structure that can be increased or decreased in bay distance of 5m according to the clients’ requirements. The main frameworks (upright support and roof beam) are manufactured with high impact extruded anodized aluminum (6061/T6). The PVC covers use PVC-coated polyester textile and flame retardance which is based on the European standard din 4102b1, M2.

There are also many different styles sand shapes like square, hexagonal, octagonal, decagonal, dodecagonal, and double decker. All clear span big ten structures are available with a complete range of accessories. These accessories include sidewalls with clear windows, ground anchors, weight plate, lining, glass wall system, and ABS hard wall system.

Specifications

Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years

Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

Connector: strong hot-dip galvanized steel

Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius

Wind Loading: max. 100km/h (can be reinforced)

Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)

Easy to be assembled and dismantled, movable. No pole inside, 100% available interior space.

Fixing Methods

Applications

Widely used for parties, weddings, events, celebrations, sports, trade shows, warehouse, Hajj, conferences, cafe shops, restaurants, corporate events, etc.

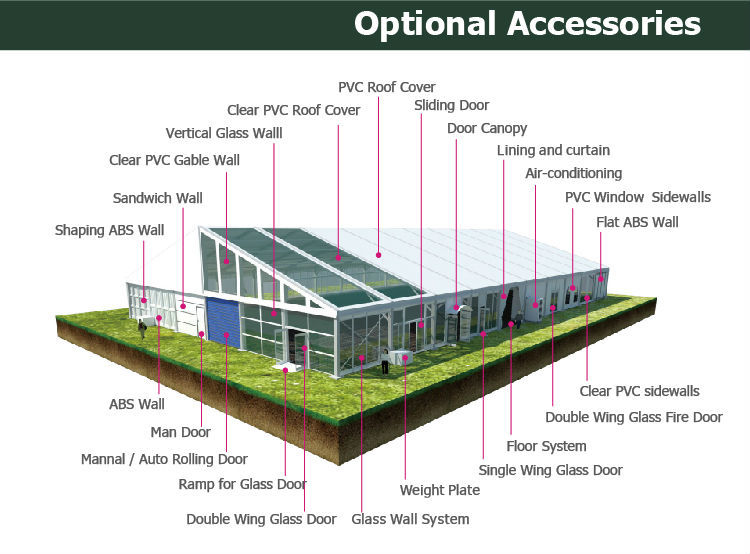

Accessories

Covers: colorful cover, transparent cover, inflatable roof cover

Windows: dome or square clear PVC windows, mesh window, glass window for glass wall

Wooden Flooring System: VIP cassette flooring, simple cassette flooring

Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)

Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall

Fixing Methods: ground anchors, weight plate, expandable bolts

Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents

Optional Items: table, chair, lighting, AC, carpet, installation tools, booth, mobile toilet, etc.

Packing:

Aluminum frame packed in membrane film

Hardware packed in solid carton box

Roof and sidewall in professional PVC carry bag

Customized packing is available

Liri Architecture Technology (Guangdong) Co., Ltd. was established in 1997 and headquartered in Zhuhai, Guangdong. With nearly 600 employees and a total factory area of 120,000 square meters. The company has branches in Beijing, Shanghai, Guangzhou, Changsha, Chengdu, the United States, Thailand, and Africa, and products have been exported to more than 130 countries and regions.

Focusing on mobile modular structures for nearly 30 years, Liri has not only established good cooperative relationships with the Canton Fair, Airshow China, East Asian Commodity Exhibition, Asian Games, Universiade, National Games, etc., but also collaborated with major campsite brands to build multiple outdoor high-end luxury glamping tent campsites. Professional design, manufacturing, sales, and rental of aluminum alloy modular tent structures, Air Domes, and glamping tents, providing one-stop temporary space solutions for various exhibitions, brand showrooms, events, sports venues and industrial warehousing, campsite hotels, and other fields.
