9m diameter clear PVC top dome tent with glass door for outdoor events

1. Application

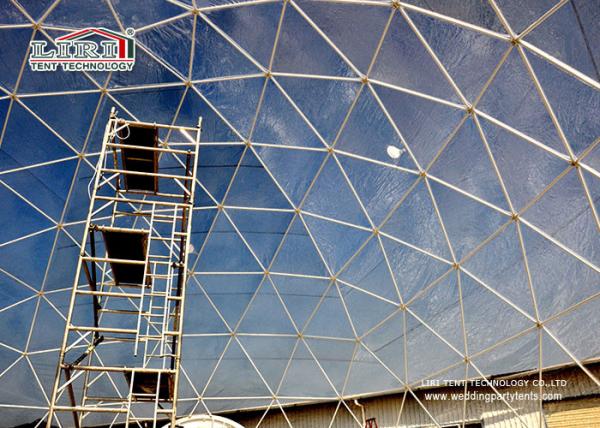

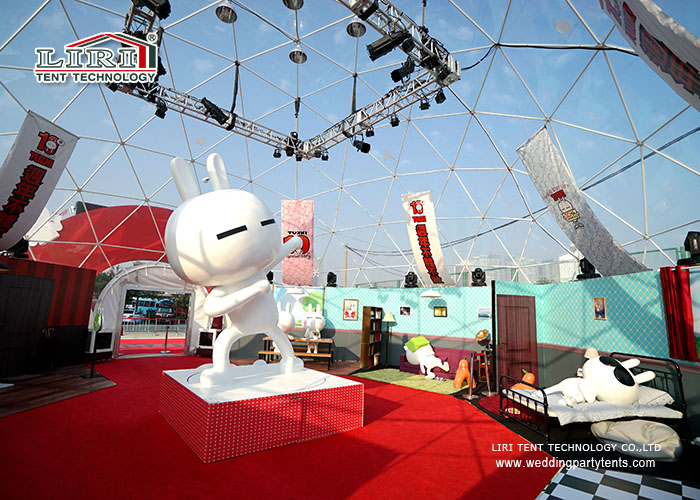

The pictures above the 9m diameter clear dome tent.

Our geodesic dome tent is widely used as wedding marquee tent, event tent, party tent, festival tent, racing tent, sports tent, exhibition tent, tradeshow tent, warehouse tent, storage tent, outdoor activity marquee tent, and tent hire business, event design business, etc.

2. Steel Framework:
Structure material: Steel Q235.
Structure finis Hot-dip, double sided galvanised, powder coated white
Struts details: φ32 diameter/ 2.0mm strut's wall thickness

Connectiing bolts: M12 zinc-coated bolts

3. Membrane material specification

membrane material: PVC coated polyester frabics

weight: 650g/sqm (non-opaque)

850/sqm (opaque)

certifications: class B1 and M2 of fie resistance according to DIN4102

4. Specification

The diameter of the geodesic dome tent series could be 5m, 6m, 8m, 9.5m, 12m, 14m, 19m, 25m, and 30m.

5. Entrances/ Doors/ Openings:

Number of entrances: 1 (up tp 3 optionally)

Width of circular entrance: 1.0m (at the floor level)

Height of circular entrance: 2.2m

Membrane door: 1xPVC membrane zip door (white or transparent)

Aluminum-glass door: optional singla wing aluminum-glass door with anti-panic system and safe glass.

Ventilation: 3 ventilation openings at the top AC/Heating opening available on request

Windows: circular or triangle transparent membrane windows available on request.

6. Membrane options:

(1). Transparent front: White, opaque PVC fabric with detachable, exchange clear, transparent front part, our most versatile solution.

(2). Blackout: White, opaque PVC fabric with detachable, exchange clear, opque front part, ideal for darkening out the interior.

(3). Transparent membrane: Completely transparent PVC cover, ideal for night events, giving you the possibility to create magical light effects.

(4). Branded membrane: Fully colour printed fabric or printed detachable front part, ideal to put your brand's message across.

(5). Open dome: unique 2-in-1 solution that combines the classic freedome shape with a completely innovative mobile stage system.

7. Optional Accessories
wooden floor, galss door, ground anchors, decoration ceilings and inside curtain.


8. Reputation

1) The first tent manufacturer established in 1997 in China.

2) The largest tent manufacturer in China which covers 100, 000sqm.

3) The most reliable tent supplier. Exported to over 80 countries, and maintaining excellent reputation,

4) The NO. 1 tent exporter for four years in China.

5) Engieer's Company, the owner of Liri Tent is more concern quality and safety than you.
