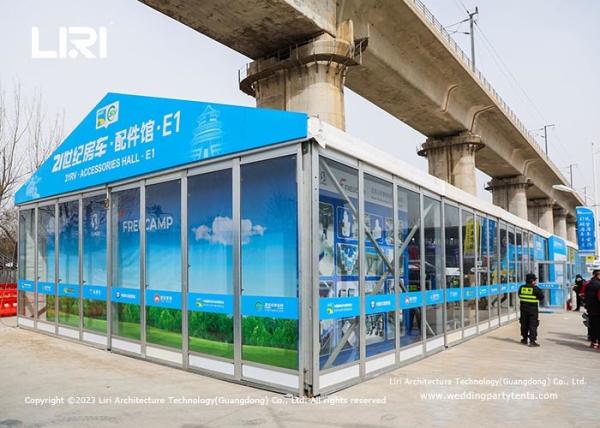

Waterproof Removable Aluminum Alloy Outdoor Tents For Auto Show
With the characteristic of security, reliable and high-end, Liri
Tent Outdoor Party Tents can make you more flexible in the choice of location and scale as
for temporary outdoor venues. The clear span size available from 3m
to 60m which can adapt to and meet the scenario of any scale.
Outdoor clear marquee use the transparent PVC fabric roof cover,
the performance of the PVC fabric is good and soft, it is not easy
to mildew and discoloration. it will not turn yellow or fade within
five years, and conform to the German standard DIN 4102 B1, M2, CFM
fire protection standards, has a good flame retardant performance.
Liri Tent pay more attention to the safety and quality of the tent,
and good after-sales service, customer satisfaction is our eternal
pursuit.

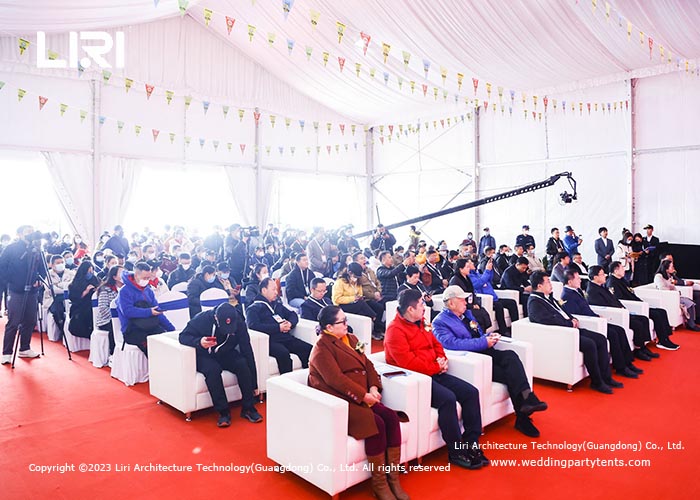

>> Application of Our Outdoor Event Tents
It is equipped with clear windows, decoration roof lining, inside
curtain, pagoda tent entrance. The tent series are widely used as
the party tent, wedding tent, exhibition tent, conference tent,
festivals celebration tent, corporate events tent or other events,
etc.
>> Specification of Our Outdoor Event Tents
· Frame struss: hard pressed extruded aluminium 6061/T6(15HW) which can last more
than 20 years.
· Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
· Connector: strong hot-dip galvanized steel
· Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
· Wind load: max. 100km/h (can be reinforced)
· Snow load: 75kg/sqm (snow can't stay if use big degree roof pitch design)
· Easy to be assembled and dismantled, movable.
· No pole inside, 100% available interior space.
Size Available:
The clear-span of tent is from 3m to 60m, the length could be 6m,
9m, 12m, +3m more or 10m, 15m, 20m, and +5m more.
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| NPT | 3m/9.8' | 3m/9.8' | 2.6m | 3.16m | 100x48x3mm(4-channel) |
| NPT | 4m/13' | 3m/9.8' | 2.6m | 3.35m | 100x48x3mm(4-channel) |
| NPT | 5m/16.4' | 3m/9.8' | 2.6m | 3.52m | 100x48x3mm(4-channel) |
| NPT | 6m/19.7' | 3m/9.8' | 2.6m | 3.71m | 100x48x3mm(4-channel) |
| NPT | 8m/26.2' | 3m/9.8' | 2.6m | 4.05m | 100x48x3mm(4-channel) |
| NPT | 9m/29.52' | 3m/9.8' | 2.6m | 4.24m | 100x48x3mm(4-channel) |
| NPT | 10m/32.8' | 3m/9.8' | 2.6m | 4.4m | 100x48x3mm(4-channel) |
| NPT | 12m/39.4' | 3m/9.8' | 2.6m | 4.76m | 100x48x3mm(4-channel) |
