Brand Name : | Liri Tent |
Model Number : | MC |
Certification : | Class B1 and MB2 of fire resistance according to DIN 4102 |
Price : | USD40-USD300 |
Payment Terms : | T/T, L/C, FOB,CIF |
Supply Ability : | 100,000sqm/Month |
Delivery Time : | 35 Days |

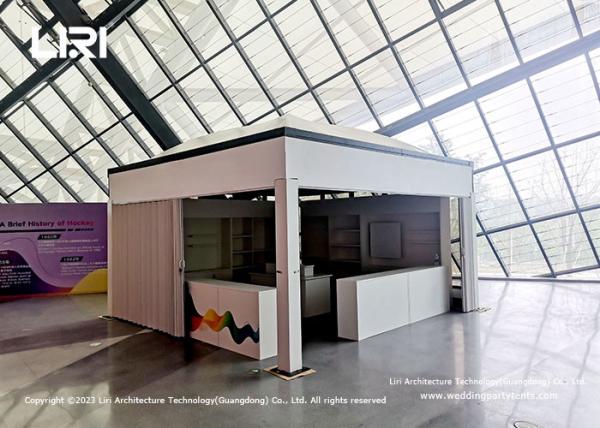

6x6m Aluminium Indoor Modular Cube Party Tents for Sport Events
Modular Cube Tent
1. Simple and generous flat-top, Applied inflatable roof with heat
preservation, thermal and noise insulation performance.
2. When used in combination, uprights and beams can be shared,
which can realize the seamless connection and unlimited expansion
in the horizontal and vertical direction.
3. used in multiple combinations and composed of different shapes,
so as to expand the use of space and reduce land area.
4. Modular Cube tent also has the function of the rain gutter
itself, eave water can be flowed directly from the eave beam into
upright for discharge, which not only solves the problem of water
but also to avoid leaving stains, affecting the appearance.
5. Fewer parts, easy transportation, instant installation and
dismantle, easy storage, no need large mechanical assistance.
Application
After equipped with other facilities, a modular cube tent can be used for temporary, semi-permanent or permanent outdoor exhibition halls, mobile offices, VIP lounges, multi-purpose suites, and outdoor hotels.
Other Tent Series:
Dimension | Clear Span | Bay Distance | Eave Height |
A shape | 3-60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
Dome like | 3-40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
High Peak | 3-10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
Curve Shape | 15-40m | 5m | 3.87m/3.89m |
Polygon | 10-60m | 5m | 4m |
Double Decker | 10-30m | 5m | 5m |
Speicification
Main Profile Material: | Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless |
Cover | Material: Double PVC-coated polyester textile, 850g/m²Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM,UV resistant Color: White, red, blue, beige, black, silver-gray, etc. |
Eave Connection | Hot-dip Galvanized twin steel plate |
Optional Accessories | Intelligent furniture system, lighting system, integral bathroom, floor, curtain,door, fingerprint lock, etc. |
Purpose | Glamping Tent , coffee shop, exhibition hall, stores, etc |
Package of tents:
1) Aluminum Frame--membrane film
2)Hardware--solid carton box
3) Tent cover--PVC carry bag.
Installation of tents:
1) If it is concrete ground, pls use the expandable bolts
2) If it is tarmac ground or grass ground or sand ground or other soft grounds, pls use the steel anchors;
3) If it is marble or tile ground or other kind indestructible grounds, pls use the weight plates system;
4) If you will make the concrete bases to fix the tent, pls use the embeded bolts M24x500mm.
![]() |
