    10m X 20m Sport Event Tents With Roof Lining Curtain Tempered Glass Walls

    Ask Lasest Price
    Brand Name : LIRI ARCHITECTURE
    Model Number : ET10m/12m/15m
    Certification : ISO9001:2015, SGS, TUV, CFM, IFAI, CE, etc.
    Price : 65~85USD/sqm
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 100,000sqm/month
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    10m X 20m Sport Event Tents With Roof Lining Curtain Tempered Glass Walls

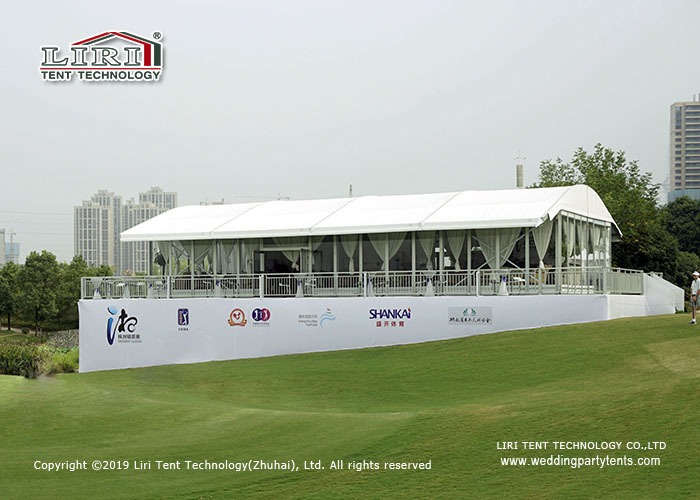

    10m x 20m Glass Tent with Roof Lining and Curtain for Golf Events

    Small glass tent adopts aluminum alloy and white PVC coated fabric material which can be waterproof, flame retardant to withstand severe weather and make a comfortable place for guests. Except for the common configuration, we also have glass walls and a flooring system for the option. There are no columns in the middle of small wedding tents which you can arrange and decorate inner space flexibly. AC, lighting or furniture, and other accessories of the events can offer together. We will try our best to create an optimal solution for you.


    DimensionClear SpanEave HeightRidge HeightBay Distance
    NPT6m2.6m3.71m3m
    NPT10m2.6m4.4m3m
    ET15m3.3m5.62m5m
    BT25m4m7.88m5m
    EBT30m4m8.9m5m
    TH40m5m10.4m5m
    LH50m5m12m5m
    Main Profile100x48x3mm, 204x120x4mm, 256x121x5mm, 300x120x5mm...



    Specifications & Features

    • Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
    • Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
    • Connector: strong hot-dip galvanized steel
    • Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
    • Wind Loading: max. 100km/h (can be reinforced)
    • Snow Loading: 30kg/sqm
    • Easy to be assembled and dismantled, moved from place to place.
    • No pole inside, 100% available interior space.



    Optional Accessories

    • Windows: transparent PVC fabric, glass windows...
    • Roof Shape: regular A shape, dome roof, polygonal, curved roof...
    • Doors: PVC sliding doors, double-wing glass doors...
    • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
    • Fixing Tools: steel anchors, weight plate, expandable bolts...
    • Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
    • Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.

    Packing

    • Aluminum frame packed in membrane film
    • Hardware packed in solid carton box
    • Roof and sidewall in a self-made PVC carry bag
    • Tailor-made packing is available
