Exquisite Arcum Tent With Luxurious Glass Wall And Door For Cineme Activities
The Arcum Tent is composed of a high reinforced aluminum frame and
PVC covers. Arcum tent is based on the “A”
frame clear span
tent design and reasonably absorbs the Chinese traditional architectural
design elements. We pre-press the aluminum roof-beams so that it
can become the curve shape.
The characteristics of the Arch Tent will include a good-looking
structure with a beautiful roofline and a lot of space inside the
tent. It will also give you a feeling of currency to use it for big
tents, exhibitions, or for a temporary showroom.
Applications:
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.
Clear-span Width | Eave Height | Ridge Height | Bay Distance | Main Profile |
15 m / 49.21 feet | 3.92 m / 12.86 feet | 5.55 m / 18.21 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |
20 m / 65.62 feet | 3.92 m / 12.86 feet | 6.33 m / 20.77 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |
25 m / 82.02 feet | 3.92 m / 12.86 feet | 7.15 m / 23.46 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |
30 m / 98.43 feet | 3.92 m / 12.86 feet | 7.87 m / 25.82 feet | 5 m / 16.40 feet | 256 x 121 x 4 mm (4 – channel) |

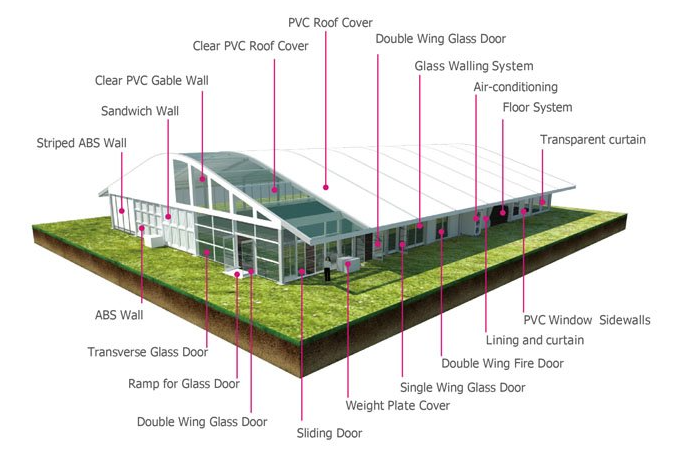

Optional Accessories
Structure
Framework: hard pressed extruded aluminum 6061/T6(15HW) which can
last more than 20 years.
Fabric Cover: 100% waterproof, high quality double PVC-coated polyester textile, flame retardant
to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning
ability, etc.
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Connector: strong hot-dip galvanized steel
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof
pitch design)
Wind Loading: max. 100km/h (can be reinforced)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Tent Roof Type | Span Width | Bay Distance | Eave Height |
regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
high peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
curve | 15m~40m | 5m | 3.87m/3.89m |
polygon | 10m~60m | 5m | 4m |
cube | 10m~30m | 5m | 5m |
Packaging
1. Aluminum frame packed in membrane film;
2. Hardware packed in solid carton box;
3. Roof and sidewall in professional PVC carry bag;
4.customized packing
![]() |
