    25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts

    Ask Lasest Price
    Brand Name : LIRI ARCHITECTURE
    Model Number : EBT25m/600
    Certification : ISO9001:2015, SGS, TUV, CFM, IFAI, CE, etc.
    Price : 85~155USD/sqm
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 100,000sqm/month
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts

    25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts


    Flexibility and easy installation make our clearspan structures a cost-efficient covered solution for sports facilities such as #basketballhall, #footballpitch, #tenniscourt, #padel, #badmintoncourt, #swimmingpool, #horseridingarena...

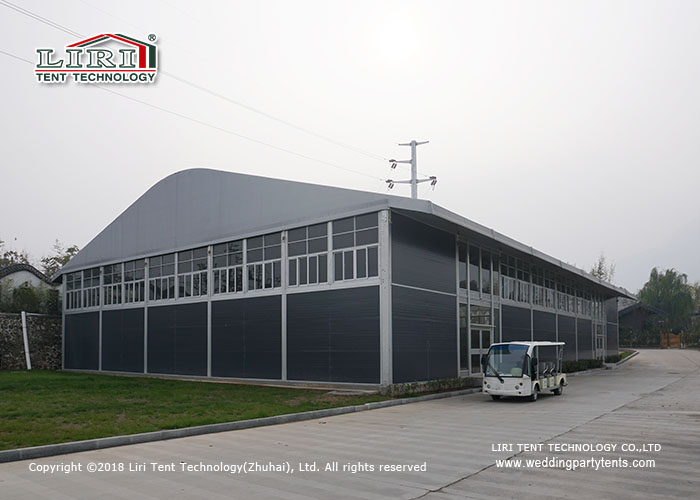

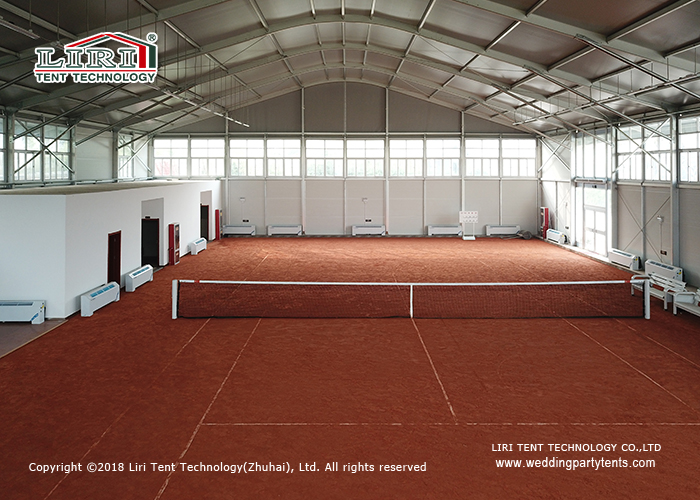

    Attached is a well-equipped clearspan structure turning the outdoor clay tennis court into an indoor court, making it possible to play tennis all 4 seasons despite the hot or rainy days.


    DimensionClear SpanEave HeightRidge HeightBay Distance
    BT 1818m4m7.06m5m
    BT 2020m4m7.1m5m
    BT 2525m4m7.25m5m
    EBT 3030m4m8.9m5m
    TH 4040m4m10.4m5m
    LH 5050m5m13m5m
    HH 6060m5m14.6m5m
    Main Profile204x120x4mm, 256x121x5mm, 300x120x5mm...



    Specifications & Features

    • Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
    • Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
    • Connector: strong hot-dip galvanized steel
    • Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
    • Wind Loading: max. 100km/h (can be reinforced)
    • Snow Loading: 30kg/sqm
    • Easy to be assembled and dismantled, moved from place to place.
    • No pole inside, 100% available interior space.



    Optional Accessories

    • Windows: transparent PVC fabric, glass windows...
    • Roof Shape: regular A shape, dome roof, polygonal, curved roof...
    • Doors: PVC sliding doors, double-wing glass doors...
    • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
    • Fixing Tools: steel anchors, weight plate, expandable bolts...
    • Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
    • Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.

    Packing

    • Aluminum frame packed in membrane film
    • Hardware packed in solid carton box
    • Roof and sidewall in a self-made PVC carry bag
    • Tailor-made packing is available
