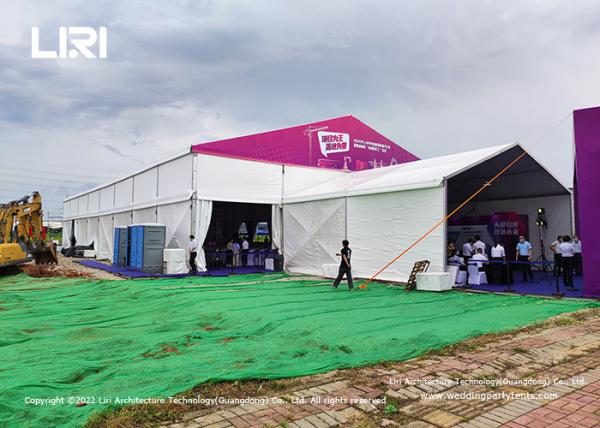

BT20x40M Outdoor Large White Waterproof Conference Events Tents
Quick Details
General Details
Big Tent-BT series: width 10m–25m
The clear span width of Big Tent series (BT series) covers 10m,
12m, 15m, 20m, 21m and 25m, and the main Aluminium profile size is
204x120x4mm. The tent adopts modular-combination design so that
tent length can be extended or decreased by every 5m. Big Tent
frameworks (upright support and roof beam) are manufactured with
high strength extruded and anodized Aluminum (6061/T6), and the PVC
covers use double PVC-coated polyester textile which is flame
retardant up to the European standard DIN 4102B1, M2.
There are also many different shapes of tents with various sizes in
the range of Big Tent-BT series, like a square, hexagonal,
octagonal, decagonal, dodecagonal, and double-decker structure. Big
Tent-BT series are compatible with various tent accessories to
enlarge their functions and usages. Big Tent accessories include
sidewalls with clear PVC windows, ground anchors, weight plates,
lining and curtain decoration, glass wall system,ABS hard wall
system, steel sheet wall system, glass doors, sliding doors,
electronic auto rolling doors,total transparent covers and
sidewalls, flooring system, rain gutters, 1/2
hexagonal/octagonal/decagonal/dodecagonal gable sides and high
peaks on top etc..
Liri Big Tent-BT series adopt the modularized structure, short
installation period, easy to assembly and disassembly, space-saving
for storage and transportation. The big tent is designed strong and
durable with wind resistance up to 100km/hr. And the professional
tensioning system is adopted for big tent covers on which logo can
be printed.

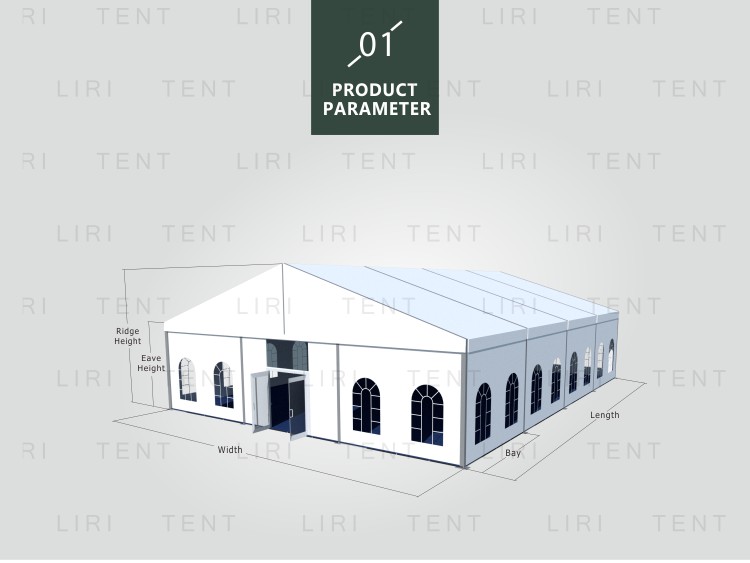

Product Parameter
Item | Width | Eave height | Ridge height | Bay Distance | Main profile |
BT | 10m | 3.88m | 5.53m | 5m | 204x120x4mm |
BT | 12m | 3.88m | 5.83m | 5m | 204x120x4mm |
BT | 15m | 3.88m | 6.3m | 5m | 204x120x4mm |
BT | 18m | 3.88m | 6.9m | 5m | 204x120x4mm |
BT | 20m | 3.88m | 7.1m | 5m | 204x120x4mm |
BT | 20m | 6m | 9.22m | 5m | 204x120x4mm |
BT | 21m | 3.88m | 7.25m | 5m | 204x120x4mm |
BT | 25m | 3.88m | 7.88m | 5m | 204x120x4mm |
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.
Applications
Exhibition Tent, Party Tent, Sports Venue, Warehouse Tent, Wedding Tent, Hangar Tent.
![]() |
