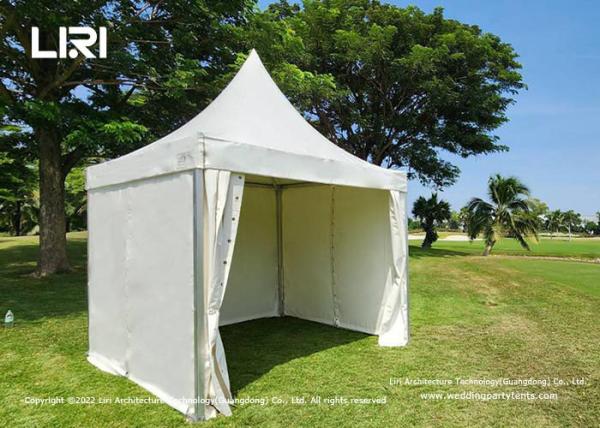

Strong 3x3m Aluminium Small Pagoda Tents With Plain PVC sidewalls


General Details

The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m, and 6x6m. Pagoda Tent has a side height of 2.5m. This type of Pagoda tent uses a 3 channel 65x65x2.5mm aluminum alloy. The standard 8x8m and 10x10m Pagoda with a 2.6 side height use a 4 channel 122x68x3mm aluminum alloy and the wind loading is 80km/h (0.3kn/m2).
The new fixing method has got design Patents. It is a new fixing method which has massively reduced the installing time and needs no help from a big machine and can avoid sliding out. Easy to install and dismantle.
The optional accessories for the Pagoda are glass walling system, door units, flooring system, ground anchors, lining, etc. Pagoda tents can be used as a single unit or combined to enlarge space and become a special structure style with a rain gutter. Our pagoda tent can meet different levels of demand and is a more flexible choice for outdoor activities.

Chart for technical data of Pagoda tent:

Description of

l Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more than 20 years.

l Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

l Connector: strong hot-dip galvanized steel

l Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius

l Wind Loading: max. 100km/h (can be reinforced)

l Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)

l Easy to be assembled and dismantled, movable.

l No pole inside, 100% available interior space.

Pational Accessories of Pagoda Tent:

· Covers: colorful cover, transparent cover, inflatable roof cover
· Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette flooring
· Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
· Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.
