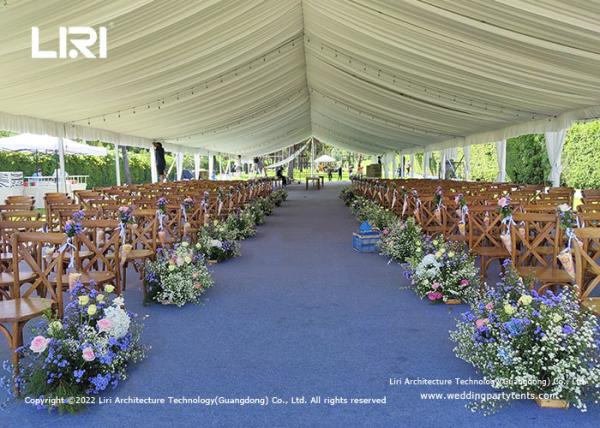

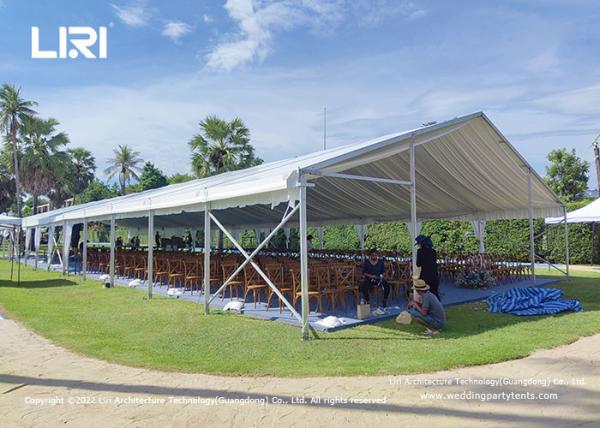

Aluminum Frame NPT12x42m with White Pvc Material For Wedding Event in Thailand

The clear span common width of New Party Tent series (NPT series) are 3m, 4m, 5m, 6m, 8m, 9m, 10m and 12m, the eave height (side height) is 2.6m. The new party tent adopts modular-combination design so that tent length can be extended or decreased by every 3m. Tent frameworks (upright support and roof beam) are made out of 100x48x3mm four channel high strength extruded and anodized Aluminum (6061/T6) , and the PVC covers use double PVC-coated polyester textile which is flame retardant up to the European standard DIN 4102B1, M2, 850g/m2, there are two kinds of PVC fabric for your choice, blockout and translucent.

1. Application

The tent series are widely used as the party tent, wedding tent, exhibition tent, conference tent, festivals celebration tent, corporate events tent or other events, etc.

New Party Tent series can be installed in short time, easy for installation and dismantle, no need of forklift and crane, can be used for temporary or permanent buildings, widely used for ourdoor
temporary exhibition hall, ritual celebration, wedding party, products promotion, sports events and so on, also can be used for temporary warehouse,workshop and emergency relief.

2. Specification

Main frame profile: 100X48X3mm.
Wind load: 100km/h.
Minimum tent length: In order to reach the designed wind load and make sure the tent is safety, pls set up the tent with the required minimum tent length.

3. Optional Accessories

There are many optional accessories available for New Party Tent to further extend its usages, common accessories include PVC clear window sidewalls, ground anchor, weight plate, lining decoration, glass wall, glass door, ABS hard wall, clear PVC roof cover and sidewall, flooring system, rain gutter, 1/2 hexagonal gable sides and high peaks on top etc. that can satisfy various required functions.

4. Materials

PVC Fabric: Weight: 850g/sqm

Thickness: 0.65mm

Block-out

Self-cleaning,mould-proof

UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2

Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.

Hardness 15hw

Anodized layer thickness more than 10μm-15μm

Aluminum alloyplug-in connectors : innovation, more precise, less dweight, same support, longer lifespan.

Connections: Hot-dip galvanized

5. Life span

Fabric (cover & sidewalls) : 6-8 years in good situation;
Aluminum frame and galvanized connectors: about 20 years

6. Certificates

Liri is the tent research & development center in China. We have independently develop many tentage products in addition, gain national invention patents accordingly in both appearance and functional. The U.S and Australia structural Engineering certificates were acquired.

System Features:

1)Four-channel aluminum frame

2) Galvanized steel connection pieces

3) Bar tensioning roof system

4) Interchangeable parts between different sizes

5) No fork lift or crane required for installation

6) No exterior guy lines required

7) Full line accessories

This product has obtained national patent, patent number: ZL201120397654.4

Package of tents:
1) Aluminum Frame packed by membrane film
2)Hardware packed by solid carton box
3) Tent cover packed by PVC carry bag.

Installation of tents:

1) If it is concrete ground, pls use the expandable bolts

2) If it is tarmac ground or grass ground or sand ground or other soft grounds, pls use the steel anchors;

3) If it is marble or tile ground or other kind indestructible grounds, pls use the weight plates system;

4) If you will make the concrete bases to fix the tent, pls use the embeded bolts M24x500mm.

LIRI TENT Successful Cases:

2022 Beijing Fashion Show Week Event

2022 Beijing Winter Olympic Games

2002-2016 China Import and Export Fair

2015 IAAF World Championship Beijing

2015 European Golf Tournament

2015 WTA ELITE TROPHY ZHUHAI

1998-2014 China International Aviation & Aerospace Exhibition

2010 Tent for concert in Columbia

2010 Guangzhou Asian Games

2010 Omar 40th Anniversary of National Day

Liri Tent Series

Company Information

Liri Tent was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.

To form an integrated management system,Liri Tent introduced advanced ERP system in 2008 and barcode management system in 2013. Liri Tent is also the pioneer to apply CNC machines that achieved the automatic processing of aluminum.
