China Cheaper 3x3m Pagoda Tent with aluminum frame for Outdoor
Event

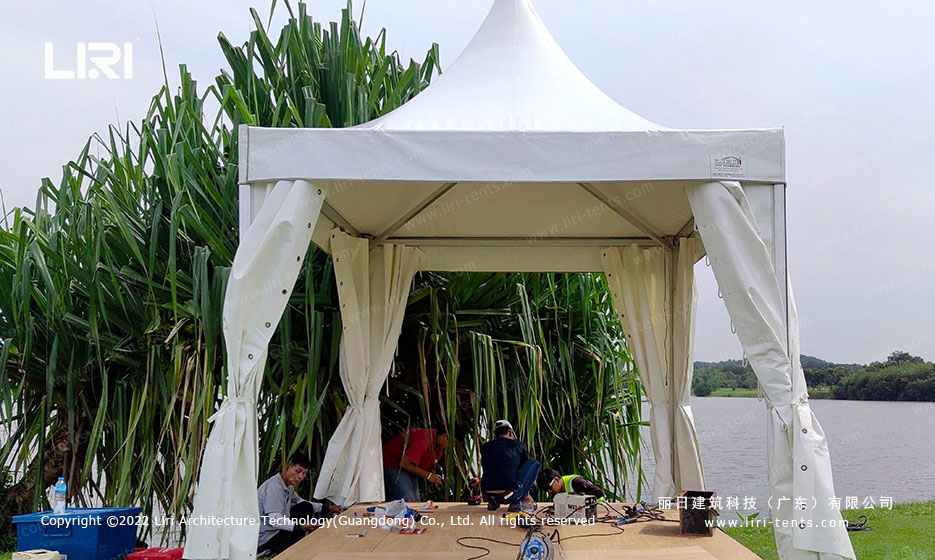

Pagoda Tent, also called Chinese Hat Marquee for its unique peak
roof. As the very popular tent types, pagoda tent can use as
separated unite alone or connected with the big marquee tent for
some unique function, widely for outdoor weddings, parties, etc.
LIRI TENT self-developed connection tent structure, more than one
set of pagoda tent can be combined randomly to make unlimited
creativity structure, it can be installed and dismantled very
quickly, only 10 minutes to set up one set 3x3m; made of aluminum
alloy, which is more stable and durable than iron and wood
structures;
UV resistant and waterproof PVC fabric; rich accessories including
Clear PVC Tarpaulin, Window Curtain, Interior Ceilings, Flooring
and so on.
The standard Pagoda Tent series is available in 3x3m, 4x4m, 5x5m,
and 6x6m.
Product features
Sturdy, elegant, trendy
Short construction period, easy to assemble and disassemble
Patented fixing method
The new fixing method not only greatly reduced assembly time, but
also prevents kederslipping out.
No need for large mechanical assistance.
Use alone or in combination by rain gutter to form special shape
Chart for technical data of Pagoda tent:
Pagoda Tent Series:
|
| Width (m) | Length(m) | Eave height (m) | Ridge height (m) | One 20 feet container can load (sets) |
Wind load | Aluminum main profile |
| 3 | 3 | 2.5 | 4.3 | 88 to 114 |
80km/h
0.3kn/sqm | 65x65x2.5mm |
| 4 | 4 | 2.5 | 4.8 | 65 to 90 |
| 5 | 5 | 2.5 | 5.43 | 56 to 79 |
| 6 | 6 | 2.5 | 5.92 | 47 to 70 |
| 8 | 8 | 2.6 | 5.36 | 15 to 18 | 122x68x3mm |
| 10 | 10 | 2.6 | 6.38 | 13 to 15 |
| Every set of gazebo includes: Aluminum frame, roof cover, four
sidewalls without clear windows |
| General Package: 1. Aluminum Frame--membrane film 2.Hardware--solid
carton box 3. Tent cover--PVC carry bag. |
20 feet container: Inner size: 5.69x2.13x2.18m; Usable Volume:
24-26CBM; Allowed Weight: 17.5 ton
|
Description of
Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more
than 20 years.
Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
Easy to be assembled and dismantled, movable.
No pole inside, 100% available interior space.
Applications:
Widely used for parties, weddings, events, celebrations, sports,
trade shows, warehouse, Hajj, conferences, cafe shops, restaurants,
corporate events, etc.
Pational Accessories of Pagoda Tent:
· Covers: colorful cover, transparent cover, inflatable roof cover
· Windows: dome or square clear PVC windows, mesh window, glass
window for glass wall
· Wooden Flooring System: VIP cassette flooring, simple cassette
flooring
· Doors: double-wing glass door, single-wing glass door, glass fire
door, aluminum door, rolling shutter(automatic or manual)
· Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich
panel wall, steel plate wall
· Fixing Methods: ground anchors, weight plate, expandable bolts
· Rain Gutters: inner roof beam rain gutter or rain gutter between
two similar tents
· Other Optional Items: table, chair, lighting, AC, carpet,
installation tools etc.
Certificates of Our Outdoor Tents
National High-tech Enterprises
ISO 9001:2008 Quality Control Standards
IFAI Certificate of Membership
American Rental Association Associate Membership
Practical Type Patent Certificate
Liri Tents Trade Mark Certificate
If the customers need above certificates copy, pls feel free to
contact with Liri Tent Technology. We will not show them on the
website to avoid copies
Packaging of Our Outdoor Tents
aluminum frame packed in membrane film
hardware packed in solid carton box
roof and sidewall in professional PVC carry bag
Delivery Time: 45 days
Life span:
Fabric (cover & sidewalls) is about 6-8 years;
Aluminum frame and galvanized connectors isabout 20 years
Liri Tent other Series
| Tent Roof Type | Span Width | Bay Distance | Eave Height |
| regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| high peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| curve | 15m~40m | 5m | 3.87m/3.89m |
| polygon | 10m~60m | 5m | 4m |
| cube | 10m~30m | 5m | 5m |
Installation of tents:
1) If it is concrete ground, pls use the expandable bolts
2) If it is tarmac ground or grass ground or sand ground or other
soft grounds, pls use the steel anchors;
3) If it is marble or tile ground or other kind indestructible
grounds, pls use the weight plates system;
4) If you will make the concrete bases to fix the tent, pls use the
embeded bolts M24x500mm.
LIRI TENT Successful Cases:
2022 Bejing Air Show
2002-2021 China Import and Export Fair
2015 IAAF World Championship Beijing
2015 European Golf Tournament
2015 WTA ELITE TROPHY ZHUHAI
1998-2014 China International Aviation & Aerospace Exhibition
2010 Tent for concert in Columbia
2010 Guangzhou Asian Games
2010 Omar 40th Anniversary of National Day
FAQ
Q: Can you print our logos on the tent?
Yes. Customized logos can be printed on the tent fabric according
to your requirements.
Q: Is that factory price?
Yes. We assure you all prices are based on factory.
Q: Does your tent be able to installed repeatedly? What is the life
span?
Our tents can be assembled and dismantled easily and repeatedly
with small transportation size. The lifespan of aluminium framework can reach
15-20 years, and 5-8 years for PVC fabrics depending on different
conditions of usage.
Q: What documents are available?
A full range documents including structural drawings, packing list,
installation manual and relative certificates can be provided.
Moreover, customs declaration is provided. We provide one-stop
service for you.
Q: LIRI Order Process
1. Contact with Liri sales team
2. Provide size and usage information to Liri sales team
3. Liri sales team will Offer design and quote
4. Confirm design and quote
5. Confirm all details and sign a contract
6. Deposit Payment
7. Confirm 3D drawing
8. Start production (Lead time 25 days)
9. Track production and feedback
10. Finish Production
11. Inspect tent quality
12. Balance payment
13. Arrange shipment Yes (Liri Arrange)
No (Arranged by buyer)
14. Guide installation Yes (Arrange skilled supervisor)
No (Set up by buyer)
15. Offer After-sale service and follow up for 5 years
