    15m X 30m Dome Roof Glass Wall Double Decker Tent For Trade Shows

    Ask Lasest Price
    Brand Name : LIRI ARCHITECTURE
    Model Number : DDS15m
    Certification : ISO9001:2015, SGS, TUV, CFM, IFAI, CE, etc.
    Price : 180~300 USD/sqm
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 100,000sqm/month
    Delivery Time : within 30 days
    • Product Details
    • Company Profile

    15m X 30m Dome Roof Glass Wall Double Decker Tent For Trade Shows

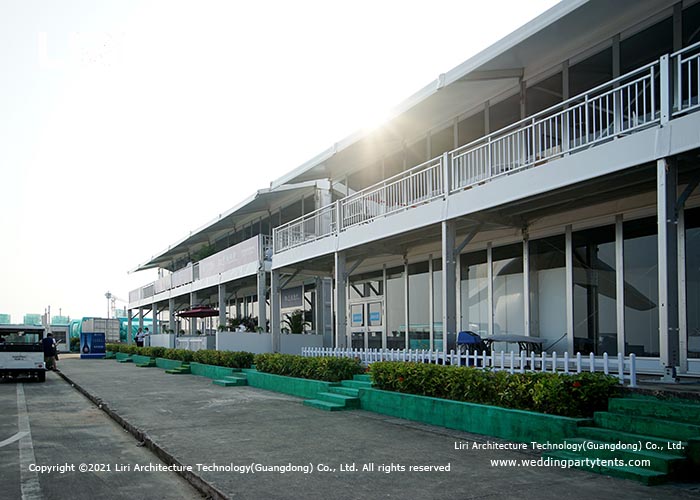

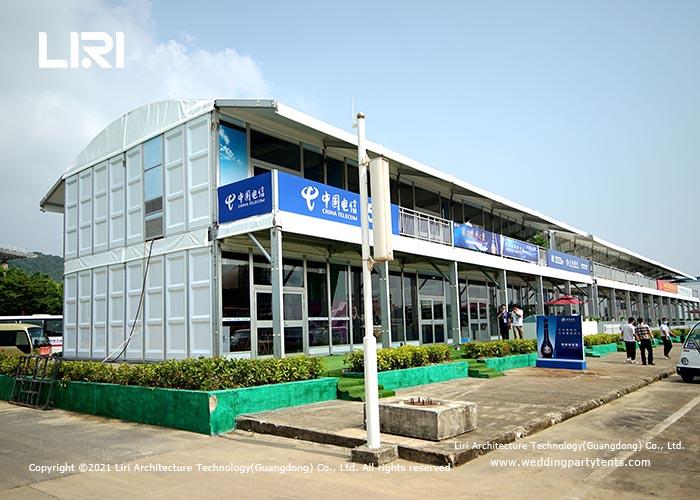

    15m x 30m Dome Roof Glass Wall Double Decker Tent For High-end Events


    Dome roof two-story tent flame material adopts Reinforced aluminum alloy 6061/T6 extruded profile, surface anodized finish, and Roof Covers and side walls are 850g/m2 PVC-coated polyester textile flame retardant to DIN4102 B1, M2. Besides, the flooring structural support adopts our high-quality wooden beams and the second-floor system adopts a 28mm thick waterproof splint. Liri Structure is always strong and durable with its 100km/h wind speed resistance. The tents special design for ADDS with curved beams and a roof bar tensioning system which helps it to resist higher wind speed and snow loading capacity.


    DimensionClear SpanEave HeightRidge HeightBay Distance
    NPT6m2.6m3.71m3m
    NPT10m2.6m4.4m3m
    ET15m3.3m5.62m5m
    BT25m4m7.88m5m
    EBT30m4m8.9m5m
    TH40m5m10.4m5m
    LH50m5m12m5m
    Main Profile100x48x3mm, 204x120x4mm, 256x121x5mm, 300x120x5mm...



    Specifications & Features

    • Framework: hard-pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
    • Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
    • Connector: strong hot-dip galvanized steel
    • Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
    • Wind Loading: max. 100km/h (can be reinforced)
    • Snow Loading: 30kg/sqm
    • Easy to be assembled and dismantled, moved from place to place.
    • No pole inside, 100% available interior space.


    Optional Accessories

    • Windows: transparent PVC fabric, glass windows...
    • Roof Shape: regular A shape, dome roof, polygonal, curved roof...
    • Doors: PVC sliding doors, double-wing glass doors...
    • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
    • Fixing Tools: steel anchors, weight plate, expandable bolts...
    • Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
    • Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.

    Packing

    • Aluminum frame packed in membrane film
    • Hardware packed in solid carton box
    • Roof and sidewall in a self-made PVC carry bag
    • Tailor-made packing is available
