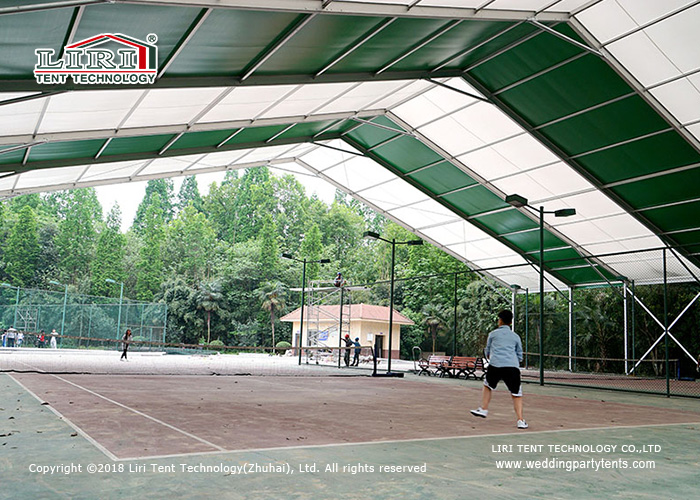

Huge Aluminum PVC Structure Marquee Tent for Football Field
Semi-Permanent Sport Court
Specifications of Our Tents
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Mainprofile |
| BT | 10m/32.8' | 5m/16.4' | 3.88m | 5.53m | 204x120x4mm(4-channel) |
| BT | 12m/39.4' | 5m/16.4' | 3.88m | 5.83m | 204x120x4mm(4-channel) |
| BT | 15m/49.2' | 5m/16.4' | 3.88m | 6.3m | 204x120x4mm(4-channel) |
| BT | 20m/65.6' | 5m/16.4' | 3.88m | 7.1m | 204x120x4mm(4-channel) |
| BT | 21m/68.9' | 5m/16.4' | 3.88m | 7.25m | 204x120x4mm(4-channel) |
| BT | 25m/82' | 5m/16.4' | 3.88m | 7.88m | 204x120x4mm(4-channel) |
| The length can be extended by 5m bay such as
15m,20m,30m,40m...Customized size is available. |
1. Features
1.1 Framework material: Hard pressed extruded aluminium 6061/ T6
(13HW)
1.2 Eave connection: Galvanized steel insert
1.3 Cover material
A) PVC-coated polyester textile
B) Waterproof, UV resistant, Frame retardant to DIN 4102 B1, M2,
CFM
C) Fabric weight: From 750 to 900G/M2
2. Applications:
Different size and style tents providing as solution of an office
for registration, outdoor events, party, wedding, exhibition,
parking, auto show warehouse, storage festival, outside camping,
sports events, temporary warehouses/workshops, celebrations and
military affairs VIP reception center, business center, security
inspection area, walkway, welcome station, shuttle station and so
on.
3. Superiority of tents
Sizes can be customized
Allowed temperature condition: -30 degree Celsius~+70 degree
Celsius
No pole inside, 100% room is available
Trouble-free and easy transportation, erection, dismantling,
storage
Wind loading up from 80 to 100 km per hour
Multifunctional, widely used for different request
4. Optional accessories
PVC window sidewalls
Transparent PVC
Wooden floor
Sandwich walling
ABS Walling
Glass Walling, glass door
Decoration lining and Curtain
Glass door units
PVC fabric rolling door
Ramp
Ground anchor and Anchor puller
Weight plate
Rain gutter
Rack for transportation
5. Certificates:
ISO 9001: 2008 (01100056824), IFAI, NEPA, CFM, DIN 4102 B1, M2,
Engineer Notarization etc.
6. Delivery time:
Within 30 days since order confirmed
