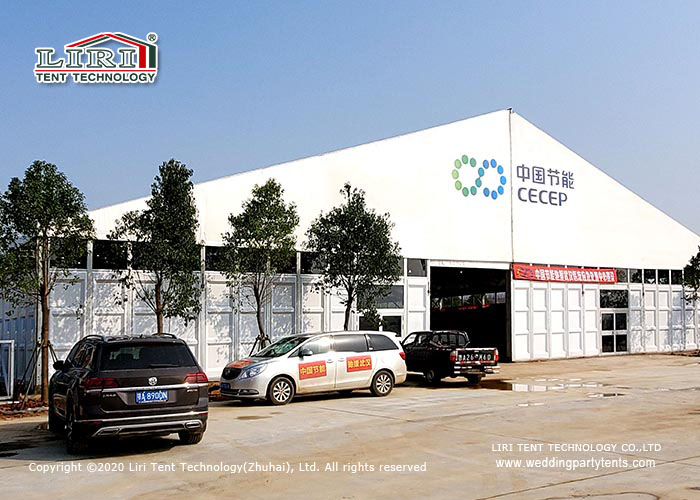

Big tent structure TH40m x70m with ABS wall used for waste
management center
Specification for 50 width tents as Restaurant for China Air Show
Frame : hard pressed extruded aluminium 6061 /T6(15HW) which can
last 15 to 25 years.
Fabric cover: high quality double PVC-coated polyester textile,
100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV
resistant, tear resistant, self-cleaning ability, etc.
Connecter: strong hot-dip galvanized steel, zinc thickness over
80um
1. Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last more
than 20 years.
2. Fabric Cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
3. Connector: strong hot-dip galvanized steel.
4. Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsiu
5. Wind Loading: max. 100km/h (can be reinforced)
6. Snow Loading: 30kg/sqm (snow can't stay if use big degree roof pitch design)
7. Easy to be assembled and dismantled, movable.
8. No pole inside, 100% available interior space.
Tent Series
Tent Roof Type | Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |
Applications
Different size and style tents providing as solution of an office
for registration, outdoor events, party, wedding, exhibition,
parking, auto show warehouse, storage festival, outside camping,
sports events, temporary warehouses/workshops, celebrations and
military affairs VIP reception center, business center, security
inspection area, walkway, welcome station, shuttle station and so
on.
Optional accessories
PVC window sidewalls
Transparent PVC
Wooden floor
Sandwich walling
ABS Walling
Glass Walling, glass door
Decoration lining and Curtain
Glass door units
PVC fabric rolling door
Ramp
Ground anchor and Anchor puller
Weight plate
Rain gutter
Rack for transportation
Optional accessories for TH40m x70m used for waste management
center:
1. Cassette floor or economic wooden floor
2. Decoration liners(roof liner and side liner)
3. Glass door+glass wall
4. French window
5. ABS solid wall
6. Steel Sheet Plate Wall or Sandwich panel wall(perfect for
warehouse)
7. Lights(standard lights&Crystal Chandelier)
8. Air conditioners
9. Furniture, earth anchors, heavyweight plate, clear PVC etc
Fxing Methods :
1) If it is concrete ground, pls use the expandable bolts.
2) If it is tarmac ground or grass ground or sand ground or other
soft grounds, pls use the steel anchors;
3) If it is marble or tile ground or other kind indestructible
grounds, pls use the weight plates system;
4) If you will make the concrete bases to fix the tent, pls use the
embeded bolts M24x500mm.
Pictures for reference
Competitive Advantages:
1. Established in 1997, Liri Tent is the first tent manufacturer in China.
2. Liri Tent is the largest tent manufacturer in China. The factory covers 100,000sqm.
3. The most reliable tent supplier in China, whose products have been exported
to over 100 countries.
4. Keep being the No.1 tent exporter in China.
5. We are more concerned about the quality and after-sales service
than you.
6. The strongest and most creative technical team who are making
new designs in every year.
7. Liri Tent is the pioneer of CNC Application. Realization of
automatical drilling and cutting for aluminum alloy and PVC fabric.
Achievement of higher manufacturing accuracy and quality.
