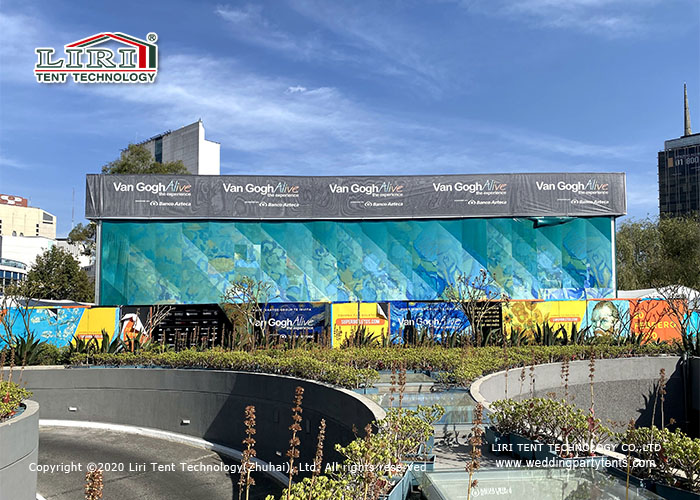

Liri Cube Structure Tent 25x50m With 8m Height Used For Van Gogh
Art Exhibition
The cube structure tent series are available in clear span widths
from 10m to 30m. The inflatable roof system provides heat isolation
to achieve thermostatic effect.
The roof is flat with 7° roof pitch. It is worth mentioning that there is a parapet on the
eave of the tent. After the inprovement and innovation, the space
for banner advertising is increased which allows to print
advertisements on tents.
Tent Series
Tent Roof Type | Span Width | Bay Distance | Eave Height |
| Regular | 3m~60m | 3m/5m | 2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m |
| Dome | 3m~40m | 3m/5m | 2.6m/3m/3.23m/3.88m/3.92m |
| High Peak | 3m~10m | 3m/4m/5m/6m/8m/10m | 2.5m/2.6m |
| Curve | 15m~40m | 5m | 3.87m/3.89m |
| Polygon | 10m~60m | 5m | 4m |
| Double Decker | 10m~30m | 5m | 5m |
Type: CS| Span Width | Eave Height | Ridge Height | Bay Distance | Main Profile |
|---|
| 10m | 5m | 5.58m | 5m | 204x120x4mm(4-channel) |
| 15-25m | 5m | 5.89m/6.2m/6.5m | 5m | 256x121x5mm(4-channel) |
| 30m | 5m | 6.8m | 5m | 300x120x5mm(4-channel) |
System Features:
Inflatable PVC fabric roof cover with heat insulation, preservation
and thermostatic effect
Creat a quiet and comfortable indoor environment
Lower roof pitch makes the tent look like an actual building but
movable and flexible
Advanced in supporting facilities with lighting, drainage and
collision avoidance system
Aparapet on the eave providing the platform for printing Ads
Superiority of tents:
Sizes can be customized
Allowed temperature condition: -30 degree Celsius~+70 degree
Celsius
No pole inside, 100% room is available
Trouble-free and easy transportation, erection, dismantling,
storage
Wind loading up from 80 to 100 km per hour
Multifunctional, widely used for different request
Applications:
Different size and style tents providing as solution of an office
for registration, outdoor events, party, wedding, exhibition,
parking, auto show warehouse, storage festival, outside camping,
sports events, temporary warehouses/workshops, celebrations and
military affairs VIP reception center, business center, security
inspection area, walkway, welcome station, shuttle station and so
on.
Optional Accessories for exhibition tents
Ground anchor, anchor puller, weight plate, glass door, fire door,
glass wall, ABS hard wall, lining, flooring system, clear PVC
windows, ramp, transport rack etc.
Features
Framework material: Hard pressed extruded aluminium 6061/ T6 (13HW)
Eave connection: Galvanized steel insert
Cover material
A) PVC-coated polyester textile
B) Waterproof, UV resistant, Frame retardant to DIN 4102 B1, M2,
CFM
C) Fabric weight: From 750 to 900G/M2
Superiority of tents
Sizes can be customized
Allowed temperature condition: -30 degree Celsius~+70 degree
Celsius
No pole inside, 100% room is available
Trouble-free and easy transportation, erection, dismantling,
storage
Wind loading up from 80 to 100 km per hour
Multifunctional, widely used for different request
Why Choose Liri?
1, Liri Tent eatablished in1997 and it was the first tent
manufacturer in China.
2, Liri Tent is the largest tent manufacture in China. The factory
covers 121,600sqm.
3, The most reliable tent supplier in China, whose products have
been exported to over 120 countries.
4, Keep being the No.1 tent exporter in China.
5, We are more concerned about the quality and after-sale service
than others.
6, With the core technologies in tent industry, Liri Tent obtained
dozens of national invention patents.
Certificates
Liri is the tent research & development center in China. We have
independently develop many tents products and gain national
inventionpatents accordingly in both appearance and functional. The
U.S. and Australia structural Engineering certificates were
acquired.
FAQ
1, Can you print our logos on the tent?
Yes, customized logos can be printed on the tent fabric according
to your requirements.
2, Is that factory price?
Yes, we assure you all prices arwe based on factory.
3, Does your tents be able to installed repeatedly?
What is the life span?
Our tents can be assembled and dismantled easily and repeatedly
with small transportation size. The life span of our aluminum Frame
is about 15-20 years. And 5-8 years for PVC fabrics depending on
different conditions of usage.
4, What documents are available?
A full range documents, including strural drawings, packing list,
installation manual and relative certificates can be provided.
Further more, customs declaration is provided. This isan one-stop
service for you.
