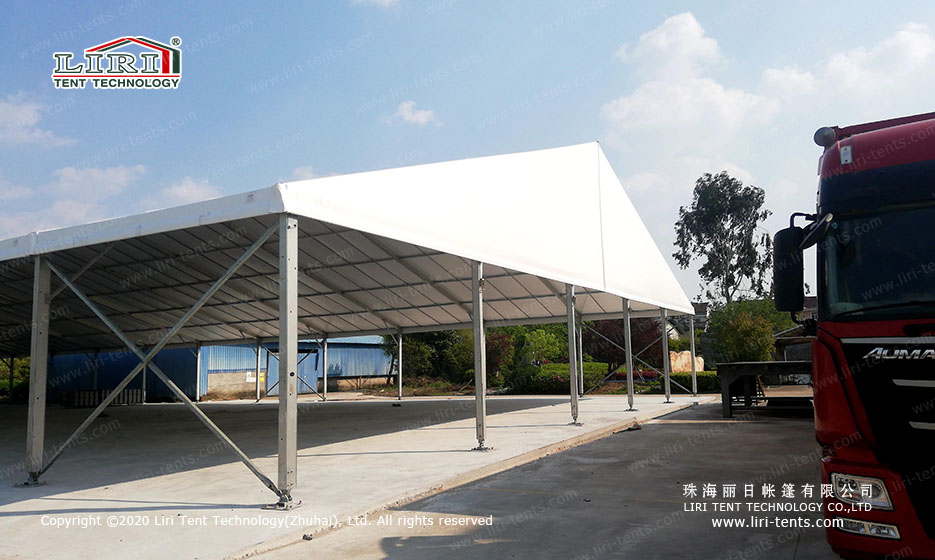

25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse

Liri Architecture Technology (Guangdong) Co., Ltd
Contact Now
    Buy cheap 25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse from wholesalers

    Buy cheap 25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse from wholesalers
    • Buy cheap 25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse from wholesalers
    • Buy cheap 25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse from wholesalers
    • Buy cheap 25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse from wholesalers
    • Buy cheap 25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse from wholesalers

    25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse

    Ask Lasest Price
    Brand Name : LIRI TENT
    Model Number : liri tent-warehouse
    Certification : ISO 9001:2012, SGS, Cfm, ISO
    Price : USD50-80/sqm
    Payment Terms : T/T
    Supply Ability : 30,000sqm/Month
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse

    25x100m Big Modular Structures Tent With Aluminum Frame For Storage Or Warehouse​


    Large Storage Tent for Warehouse Storage Marquee can be widely used as the warehouse, storage tent, conferences, festivals celebrations, cafe shop, restaurants, corporate events, or other events, etc..


    1. Features

    1.1 Framework material: Hard pressed extruded aluminium 6061/ T6 (13HW)
    1.2 Eave connection: Galvanized steel insert
    1.3 Cover material
    A) PVC-coated polyester textile
    B) Waterproof, UV resistant, Frame retardant to DIN 4102 B1, M2, CFM
    C) Fabric weight: From 750 to 900G/M2


    2. Applications:

    Different size and style tents providing as solution of an office for registration, outdoor events, party, wedding, exhibition, parking, auto show warehouse, storage festival, outside camping, sports events, temporary warehouses/workshops, celebrations and military affairs VIP reception center, business center, security inspection area, walkway, welcome station, shuttle station and so on.



    3. Superiority of tents

    Sizes can be customized
    Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
    No pole inside, 100% room is available
    Trouble-free and easy transportation, erection, dismantling, storage
    Wind loading up from 80 to 100 km per hour
    Multifunctional, widely used for different request


    Liri WSBT Series:

    TypeSpan WidthBay DistanceEave HeightRidge HeightMain Profile
    WSBT5m/16.4'5m/16.4'4.2m5.05m204x120x4mm(4-channel)
    WSBT7.5m/24.6'5m/16.4'4.2m5.46m204x120x4mm(4-channel)
    WSBT10m/32.8'5m/16.4'4.2m5.84m204x120x4mm(4-channel)
    WSBT12m/39.4'5m/16.4'4.2m6.16m204x120x4mm(4-channel)
    WSTH20m/65.6'5m/16.4'5.2m8.4m300x120x5mm(4-channel)
    WSTH25m/82'5m/16.4'5.2m9.2m300x120x5mm(4-channel)
    WSTH30m/98.4'5m/16.4'5.2m10m350x120x5mm(4-channel)
    The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size is available.

    Optional Accessories


    · Covers: colorful cover, transparent cover, inflatable roof cover
    · Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
    · Wooden Flooring System: VIP cassette flooring, simple cassette flooring
    · Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)
    · Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
    · Fixing Methods: ground anchors, weight plate, expandable bolts
    · Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
    · Other Optional Items: table, chair, lighting, AC, carpet, installation tools etc.


    Products certificate
    · National High-tech Enterprises
    · ISO 9001:2008 Quality Control Standards
    · IFAI Certificate of Membership
    · American Rental Association Associate Membership
    · Practical Type Patent Certificate
    · Liri Tents Trade Mark Certificate


    Liri Tent Successful Cases:



    . 2022 Beijing winter Olympic Games
    · Kinds of New Style Tent for China Open
    · Canton Fair Exhibition Hall
    · 2011 Universiade Official Tent Supplier
    · 2010 Asian Games Exclusive Tent Supplier&Sponsor
    · China Grand Rally Sponsor
    · Hong Kong Wine and Dine Festival



    TypeSpan WidthBay DistanceEave HeightRidge HeightMain Profile
    BT15m/49.2'5m/16.4'3.88m6.30m204x120x4mm(4-channel)
    BT20m/65.6'5m/16.4'3.88m7.10m204x120x4mm(4-channel)
    BT25m/82'5m/16.4'3.88m7.80m204x120x4mm(4-channel)
    EBT20m/65.6'5m/16.4'3.92m7.20m256x121x5mm(4-channel)
    EBT25m/82'5m/16.4'3.92m8.0m256x121x5mm(4-channel)
    EBT30m/98.4'5m/16.4'3.92m8.9m256x121x5mm(4-channel)

    The length can be extended by 5m bay such as 15m,20m,30m,40m...Customized size or shape is available.


    >> Tent Series



    Tent Roof Type
    Span WidthBay DistanceEave Height
    Regular3m~60m3m/5m2.6m/3m/3.3m/3.88m/4.2m/5m/5.2m
    Dome3m~40m3m/5m2.6m/3m/3.23m/3.88m/3.92m
    High Peak3m~10m3m/4m/5m/6m/8m/10m2.5m/2.6m
    Curve15m~40m5m3.87m/3.89m
    Polygon10m~60m5m4m
    Double Decker10m~30m5m5m


    The Adavantages of our company:


    1, 26 years experiences, factory occupied over 121,600sqm area.

    2, Keep 6 years No.1 tent exporter.

    3, The first and largest tent manufacturer in China.

    4, Exported to over 130 countries and remaining excellent reputation.

    5, The owner of Liri Tent who is the founder of China aluminum tent, an engineer who will pay more attention to the safety.

    6, Import the most advanced CNC machine to make the production more accurate and effective.


    Company Information

    Liri Tent was established in 1997. Our company is the first professional manufacturer who introduced European advanced tents technology into our own design. Our main products include Modular Aluminium Alloy Structure Tents, Clear Span Tent Structure and Aluminium Alloy Square Pagoda & Summer Gazebo.

    To form an integrated management system,Liri Tent introduced advanced ERP system in 2008 and barcode management system in 2013. Liri Tent is also the pioneer to apply CNC machines that achieved the automatic processing of aluminum.


    FAQ


    Q: Can you print our logos on the tent?

    Yes. Customized logos can be printed on the tent fabric according to yourrequirements.


    Q: Is that factory price?

    Yes. We assure you all prices are based on factory.


    Q: Does your tent be able to installed repeatedly? What is the life span?

    Our tents can be assembled and dismantled easily and repeatedly with smalltransportation size. The lifespan of aluminium framework can reach 15-20years, and 5-8 years for PVC fabrics depending on different conditions ofusage.


    Q: What documents are available?

    A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.


    Q:LIRI Order Process

    1. Contact with Liri sales team

    2. Provide size and usage information to Liri sales team

    3. Liri sales team will Offer design and quote

    4. Confirm design and quote

    5. Confirm all details and sign a contract

    6. Deposit Payment

    7. Confirm 3D drawing

    8. Start production (Lead time 45 days)

    9. Track production and feedback

    10. Finish Production

    11. Inspect tent quality

    12. Balance payment

    13. Arrange shipment Yes (Liri Arrange)
    No (Arranged by buyer)


    14. Guide installation Yes (Arrange skilled supervisor)
    No (Set up by buyer)


    15. Offer After-sale service and follow up for 5 years
