Aluminum and PVC Curve Tent Frame Tent Big Arch Trade Show Frame

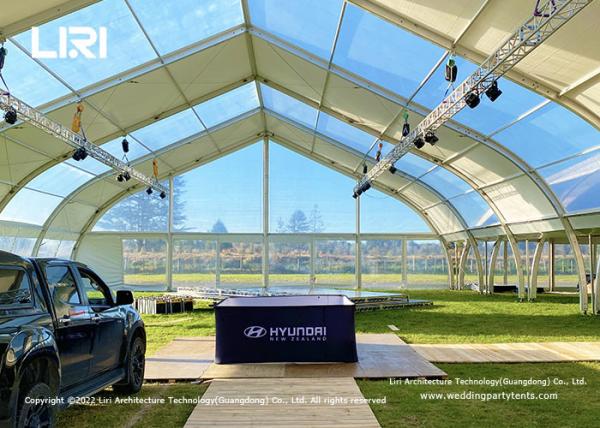

Arcum Marquee Curve Tent for trade exhibition hall
Description :
This Fire Retardant TFS Tent With White Roof Cover is one of our newest products in the tent series , it was designed
by us. Most of our clients likes this “heart” shape tent, it is
really special and attractive .
Applications :
This Fire Retardant TFS Tent With White Roof Cover suited for various activities, like corporate or private parties,
trade shows, exhibitions, sports and cultural events, and widely

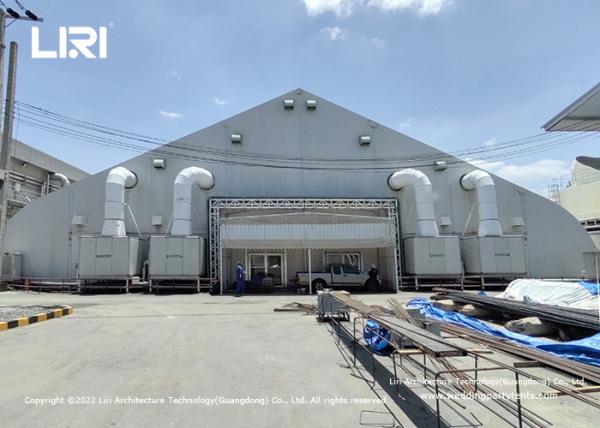

used for industrial and logistic purposes, like storage space,
workshops, office space and any other activities.
Specifications :
| Type | Span Width | Bay Distance | Eave Height | Ridge Height | Main Profile |
| CBT | 15m/49.2' | 5m/16.4' | 3.87m | 8m | 204x120x4mm(4-channel) |
| CBT | 20m/65.6' | 5m/16.4' | 3.87m | 8.8m | 204x120x4mm(4-channel) |
| CBT | 25m/82' | 5m/16.4' | 3.87m | 9.9m | 204x120x4mm(4-channel) |
| CTH | 20m/65.6' | 5m/16.4' | 3.89m | 8.9m | 300x120x5mm(4-channel) |
| CTH | 25m/82' | 5m/16.4' | 3.89m | 10m | 300x120x5mm(4-channel) |
| CTH | 30m/98.4' | 5m/16.4' | 3.89m | 11.2m | 300x120x5mm(4-channel) |
| CTH | 40m/131.2' | 5m/16.4' | 3.89m | 13.5m | 300x120x5mm(4-channel) |
| The length can be extended by 5m bay such as
15m,20m,30m,40m...Customized size or shape is available. |
Materials :
1 . Frame struss : hard pressed extruded aluminium 6061/T6(15HW)
which can last more than 20 years.
2 . Fabric cover : high quality double PVC-coated polyester
textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM,
UV resistant, tear resistant, self-cleaning ability, etc.
3 . Connector : strong hot-dip galvanized steel
4 . Allowed temperature condition : -30 degree Celsius~+70 degree
Celsius
5 . Wind load : max. 100km/h (can be reinforced)
6 . Snow load : 75kg/sqm (snow can't stay if use big degree roof
pitch design)
7 . Easy to be assembled and dismantled, movable.
8 . No pole inside , 100% available interior space.
Packing :
1 . Aluminum frame packed in membrane film
2 . Hardware packed in solid carton box
3 . Roof and sidewall in professional PVC carry bag
4 . Customized packing is available
Optional Accessories :
1 . Covers : colourful cover, transparent cover, inflatable roof
cover
2 . Windows : dome or square clear PVC windows, mesh window, glass
window for glass wall
3 . Wooden Flooring System : VIP cassette flooring, simple cassette
flooring
4 . Doors : double-wing glass door, single-wing glass door, glass
fire door, aluminium door, rolling shutter(automatic or manual)
5 . Wall : soft PVC fabric wall, glass wall, ABS hard wall,
sandwich panel wall, steel plate wall
6 . Fixing Methods : ground anchors, weight plate, expandable bolts
7 . Rain Gutters: inner roof beam rain gutter or rain gutter
between two similar tents
8 . Other Optional Items : table , chair , lighting , AC , carpet ,
installation tools etc
