Aluminum Alloy PVC Polygon Sport Event Tents 60M Width

    Buy cheap Aluminum Alloy PVC Polygon Sport Event Tents 60M Width from wholesalers

    Buy cheap Aluminum Alloy PVC Polygon Sport Event Tents 60M Width from wholesalers
    • Buy cheap Aluminum Alloy PVC Polygon Sport Event Tents 60M Width from wholesalers
    • Buy cheap Aluminum Alloy PVC Polygon Sport Event Tents 60M Width from wholesalers
    • Buy cheap Aluminum Alloy PVC Polygon Sport Event Tents 60M Width from wholesalers

    Aluminum Alloy PVC Polygon Sport Event Tents 60M Width

    Ask Lasest Price
    Brand Name : LIRI TENT
    Model Number : PG60m
    Certification : ISO9001:2008, SGS, TUV, CFM, IFAI, etc.
    Price : Negotiable
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 100,000sqm/month
    Delivery Time : within 20 days
    • Product Details
    • Company Profile

    Aluminum Alloy PVC Polygon Sport Event Tents 60M Width

    60M Width Aluminum Alloy Polygon Tent for Outdoor Sport Event

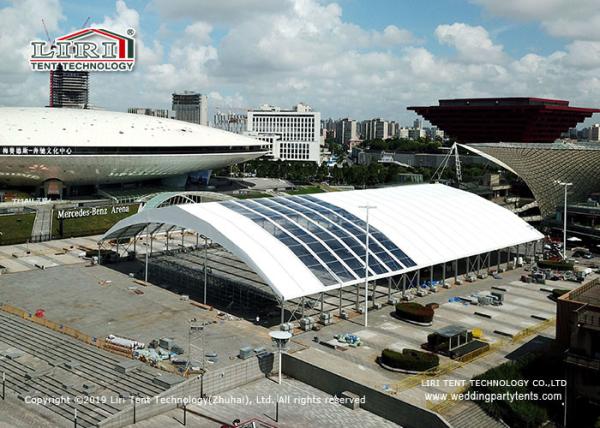

    60m Clear Span Outdoor Sports Event Tent Is Used For Basketball Competition


    Applications:


    It is widely used for various sports venues, like a basketball court, swimming pool, badminton court, table tennis hall, etc Based on the multifunctional purpose, people just need to change the different decorations will be ok. For such a big tent, it can help you to save a lot of cost on the building, and it can also use for temporary purposes.


    TypeClearspan WidthBay DistanceSide HeightRidge Height
    PG40m5m4m15.4m
    PG50m5m5m16.0m
    PG60m5m5m17.0m
    PG70m5m5m19.5m
    PG80m5m5m20.5m

    Description:

    This series of sports event tent, which is suitable to use for the basketball court, swimming pool, badminton court, table tennis hall, etc. You can enjoy sports regardless of the bad weather.


    Life Span:


    For the structure of the tent, it is strong enough for permanent or semi-permanent. The frame is using the 6061/ T6 aluminum frame, and it can use for about 20-25 years. For cover which is double-coated PVC, fire-retardant, waterproof, anti-UV, can be used under 65 degree, 10 years lifespan.


    Features&Specifications

    1.1 Framework material: Hard pressed extruded aluminum 6061/ T6 (13HW)
    1.2 Connecter: Strong hot-DIP galvanized steel, zinc thickness over 80um
    1.3 Cover material
    A) High quality double PVC-coated polyester textile
    B) 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning ability, etc.
    C) Fabric weight: From 750 to 900G/M2
    Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
    1.4 Wind load: Max. 100km/h (can be reinforced)
    1.5 Snow load: 75kg/sqm (snow can't stay if use big degree roof design)
    1.6 Easy to be assembled and dismantled, removable
    1.7 No pole inside, 100% room is available
    1.8 Sizes can be customized(like side/leg height)


    Tent Fixing Methods

    • If it is concrete ground, pls use the expandable bolts
    • If you will make the concrete bases to fix the tent, pls use the embedded bolts M 24 x 500 mm
    • If it is marble or tile ground or other kind indestructible grounds, pls use the weight plates system
    • If it is tarmac ground or grass ground or sand ground or other soft grounds, pls use the steel anchors;

    Usage


    1. Table tennis hall


    2. Badminton court


    3. Swimming pool


    4. Basketball court


    .....

    Aluminum Alloy PVC Polygon Sport Event Tents 60M Width

    Optional Accessories


    • Wooden Flooring System: VIP cassette flooring, simple cassette flooring
    • Adjustable flooring system can fix on the uneven land
    • Windows: dome or square clear PVC windows, mesh window, glass window for glass wall
    • Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall
    • Fixing Methods: ground anchors, weight plate, expandable bolts
    • Covers: colorful cover, transparent cover, inflatable roof cover
    • Other Optional Items: table, chair, lighting, AC, carpet, installation tools, etc.
    • Doors: double-wing glass door, single-wing glass door, glass fire door, aluminum door, rolling shutter(automatic or manual)

    Packaging:


    • Roof and sidewall in a professional PVC carry bag
    • Aluminum frame packed in membrane film
    • Hardware packed in solid carton box
