Brand Name : | LIRI TENT |
Model Number : | TH40x40m/400 |
Certification : | ISO9001:2008, SGS, TUV, CFM, IFAI, etc. |
Price : | Negotiable |
Payment Terms : | Western Union, L/C, T/T |
Supply Ability : | 100,000sqm/month |
Delivery Time : | within 20 days |

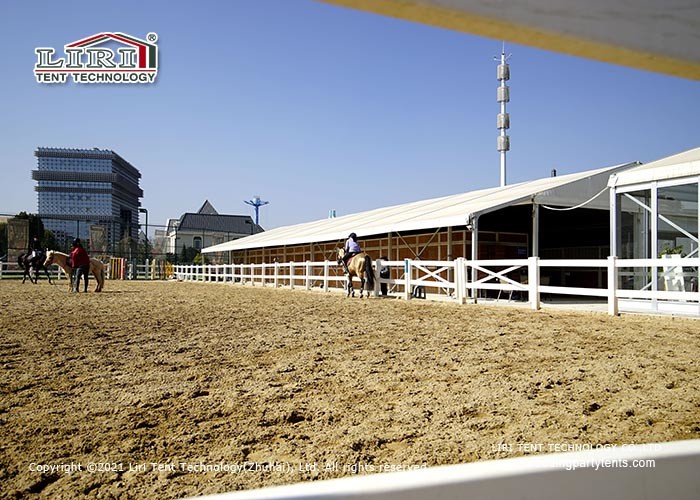

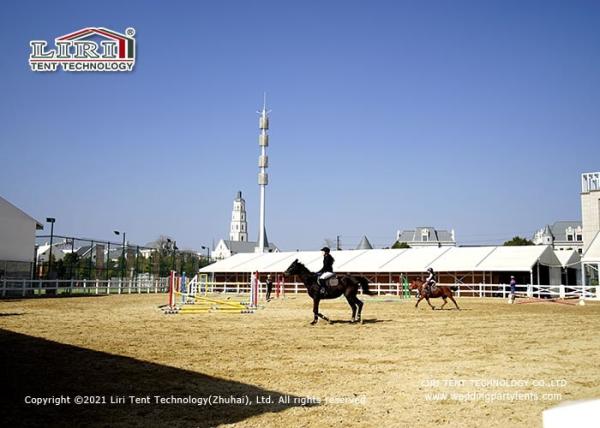

40M Clear Span Width Aluminum Alloy Sports Event Tent For Equestrian
40x40m outdoor sports event for equestrian, the side height is 4m, it just has roof cover.
Applications:
It is widely used for various sport events, like equestrian, basketball competition, football competition, etc Based on the multifunctional purpose, people just need to change the different decorations will be ok. For such a big tent, it can help you to save a lot of cost on the building, and it can also use for temporary purposes.
Tent Serie | Clearspan width | Length | Side height | Ridge height | Bay distance | Main profile size |
TH | 25m | without limit | 4m | 7.88m | 5m | 300x120x5mm |
TH | 30m | without limit | 4m | 8.8m | 5m | 300x120x5mm |
TH | 40m | without limit | 4m | 10.4m | 5m | 300x120x5mm |
TH | 50m | without limit | 4m | 12m | 5m | 300x120x5mm |
For the structure of the tent, it is strong enough for permanent or semi-permanent. The frame is using the 6061/ T6 aluminum frame, and it can use for about 20-25 years. For cover which is double-coated PVC, fire-retardant, waterproof, anti-UV, can be used under 65 degree, 10 years lifespan.
Features&Specifications
1.1 Framework material: Hard pressed extruded aluminum 6061/ T6
(13HW)
1.2 Connecter: Strong hot-DIP galvanized steel, zinc thickness over
80um
1.3 Cover material
A) High quality double PVC-coated polyester textile
B) 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV
resistant, tear-resistant, self-cleaning ability, etc.
C) Fabric weight: From 750 to 900G/M2
Allowed temperature condition: -30 degree Celsius~+70 degree
Celsius
1.4 Wind load: Max. 100km/h (can be reinforced)
1.5 Snow load: 75kg/sqm (snow can't stay if use big degree roof
design)
1.6 Easy to be assembled and dismantled, removable
1.7 No pole inside, 100% room is available
1.8 Sizes can be customized(like side/leg height)
Tent Fixing Methods
Usage
1. Equestrian Venue
2. Basketball Venue
3. Football Venue
.....
Optional Accessories
Packaging:
![]() |
